Kubota B7800
| | 2003 - 2008 |
| B Series | | Compact Utility tractor |
|
| Production |
| Manufacturer: | Kubota
|
| Type: | Compact Utility tractor
|
| Kubota B7800 Power |
| Engine (gross): | 30 hp
22.4 kW
|
| PTO (claimed): | 22 hp
16.4 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Final drives: | spur gear
|
| Differential lock: | mechanical rear
|
| Steering: | power
|
| Brakes: | wet disc
|
| Cab: | Two-post fixed ROPS. Foldable ROPS optional.
|
| Transmission: | hydrostatic
|
 Transmission details ... |
| Hydraulics |
| Type: | open center
|
| Pump flow: | 6.4 gpm
24.2 lpm
|
| Total flow: | 9.5 gpm
36.0 lpm
|
| Steering flow: | 3.1 gpm
11.7 lpm
|
| Tractor hitch |
| Rear Type: | I
|
| Control: | quarter-inching valve
|
| Rear lift (at ends): | 1655 lbs
750 kg
|
| Rear lift (at 24"/610mm): | 1300 lbs
589 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| Rear RPM: | 540 (1.375)
|
| Engine RPM: | 540@2600
|
| Mid PTO: | live*Mid PTO standard with folding ROPS, optional with fixed ROPS.
|
| Mid RPM: | 2500 (Kubota 10-spline)
|
| Engine RPM: | 2500@2578
|
| Electrical |
| Ground: | negative
|
| Battery CCA: | 443
|
| Battery volts: | 12
|
| Page information |
| Last update: | February 28, 2020
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

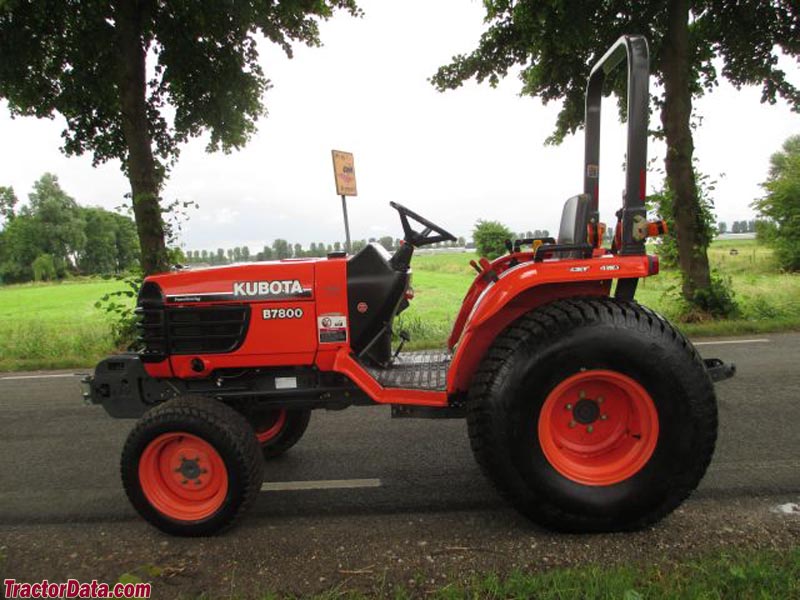

Kubota B7800 photos...
