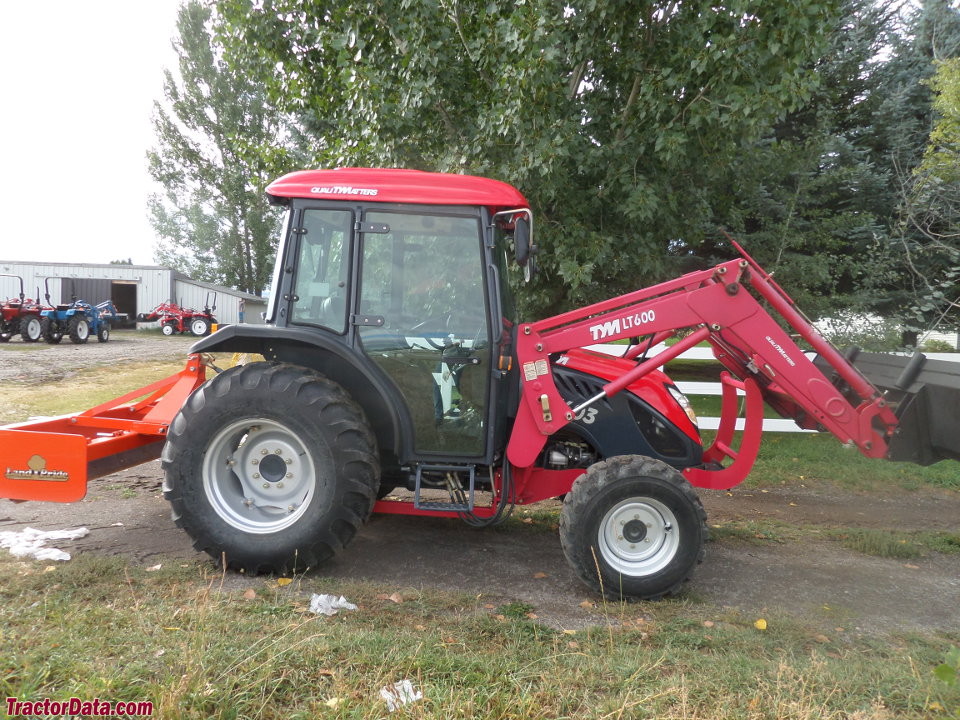

TYM T603
|
|
| Production | |
| Manufacturer | TYM |
| Compact Utility tractor | |
| TYM T603 Engine | |
| Perkins 2.2L 4-cyl diesel | |
 Engine details ... |
| TYM T603 Transmissions | |
| 24-speed | |
| 24-speed power shuttle | |
 Transmission details ... |
| TYM T603 Power | |
| Engine | 60 hp 44.7 kW |
| PTO (claimed) | 46.6 hp 34.7 kW |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Wet disc brakes | |
| Two-post ROPS. Cab optional. |
| Photos | |
 | |
 TYM T603 photos... | |
| Capacity | |
| Fuel | 19 gal 71.9 L |
| Hydraulic system | 11 gal 41.6 L |
| Hydraulics | |
| Type | open center |
| Capacity | 11 gal 41.6 L |
| Valves | 3 |
| Pump flow | 10.4 gpm 39.4 lpm |
| Total flow | 15.1 gpm 57.2 lpm |
| Steering flow | 4.7 gpm 17.8 lpm |
| Tractor hitch | |
| Rear Type | II |
| Control | position and draft control |
| Rear lift (at ends) | 4270 lbs 1936 kg |
| Rear lift (at 24"/610mm) | 3153 lbs 1430 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540/1000 (1.375) |
| Dimensions & Tires | |
| Wheelbase | 83 inches 210 cm |
| Weight | 5204 to 5380 pounds |
| Front tire | 9.5-20 |
| Rear tire | 14.9-28 |
 Full dimensions and tires ... | |
| TYM T603 attachments | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 65 |
| Battery volts | 12 |
| References | |
 | |
| Operator's Manual LT600 Self Leveling Type Front Loader (LTS19-A160L) published in 2009 |
