TYM T330

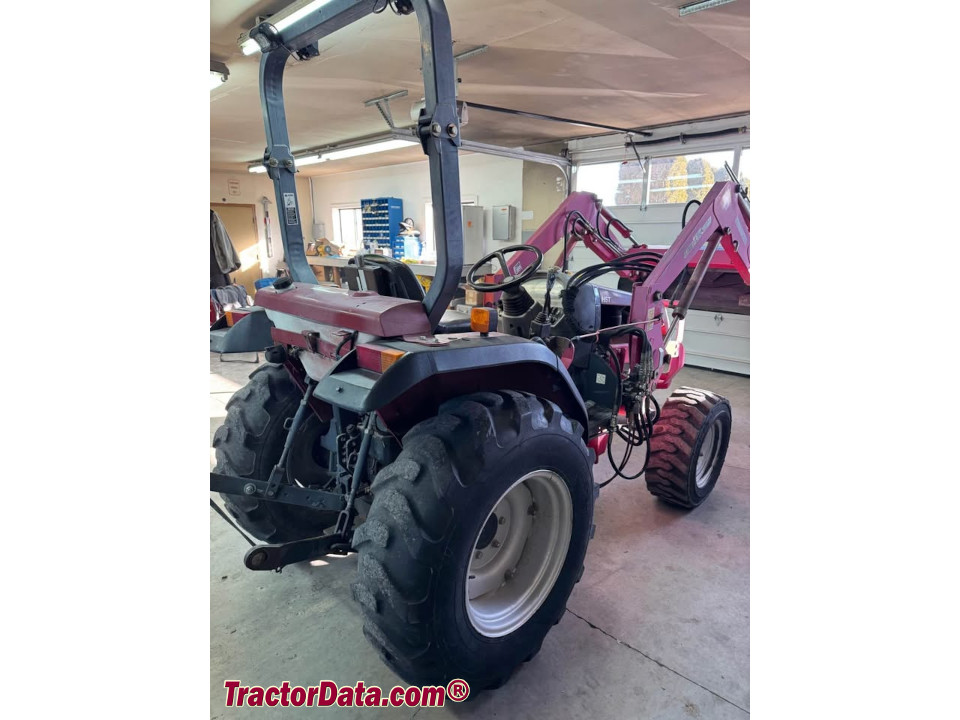

TYM T330 tractor photo
2002 - 2009
Compact Utility tractor
Production
ManufacturerTYM
Compact Utility tractor
Built in South Korea
TYM T330 Engine
Kubota 1.5L 3-cyl diesel
Engine details ...
TYM T330 Transmissions
12-speed sync shuttle
hydrostatic
Transmission details ...
TYM T330 Power
Engine31 hp
23.1 kW
PTO (claimed)26.5 hp
19.8 kW
Mechanical
Four-wheel drive
Differential lockmechanical rear
Power steering
Wet disc brakes
Two-post ROPS.
Photos
No photos of the TYM T330 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel8.2 gal
31.0 L
Hydraulic system8.5 gal
32.2 L
Hydraulics
Capacity8.5 gal
32.2 L
Valves2
Pump flow6.3 gpm
23.8 lpm
Total flow9.7 gpm
36.7 lpm
 10.85 gpm (hydro)
41.1 lpm
Tractor hitch
Rear TypeI
Rear lift (at ends)2078 lbs
942 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
Engine RPM540@2541
Dimensions & Tires
Wheelbase64 inches
162 cm
Weight3000 lbs
1360 kg
Front tire7-16
Rear tire11.2-24
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps50
Battery volts12
