McCormick Intl XTX185 Tests


McCormick Intl XTX185 tractor photo
2005 - 2007
XTX Series
Row-Crop tractor
MTX165
Series:XTX185XTX200
TTX190
OCED Tractor Test 1880

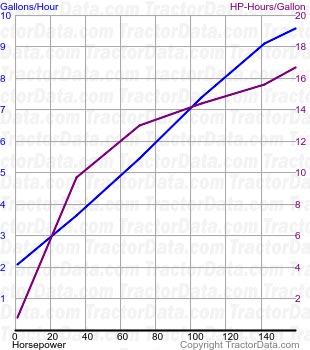

XTX185 fuel use from test 537
OCED Tractor Test 1880
Diesel 32/24 4WD
May 11 - 16, 2006
Link: OCED Tractor Test 1880 file
PTO performance
Max power:178.02 hp
132.7 kW
Fuel use:9.7 gal/hour
36.7 l/hour
Power at rated engine speed:159.3 hp
118.8 kW
Fuel use:9.5 gal/hour
36.0 l/hour
Power at rated PTO speed:174.20 hp
129.9 kW
Fuel use:9.8 gal/hour
37.1 l/hour
Drawbar performance
Max power:141.1 hp
105.2 kW
Fuel use:9.7 gal/hour
36.7 l/hour
Gear 3-2 used for power test.
Max pull:15,586 lbs
7069 kg
Gear 1-7 used for pull test.
