Satoh Bison S670
|
|
| Production | |
| Manufacturer | Satoh |
| Compact Utility tractor | |
| Satoh S670 Engine | |
| Mitsubishi 1.3L 4-cyl diesel | |
 Engine details ... |
| Satoh S670 Transmission | |
| 8-speed gear | |
 Transmission details ... |
| Satoh S670 Power | |
| Engine | 30 hp 22.4 kW |
| PTO (claimed) | 25 hp 18.6 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Steering | manual |
| power OptOptional | |
| Drum brakes | |
| Open operator station. | |

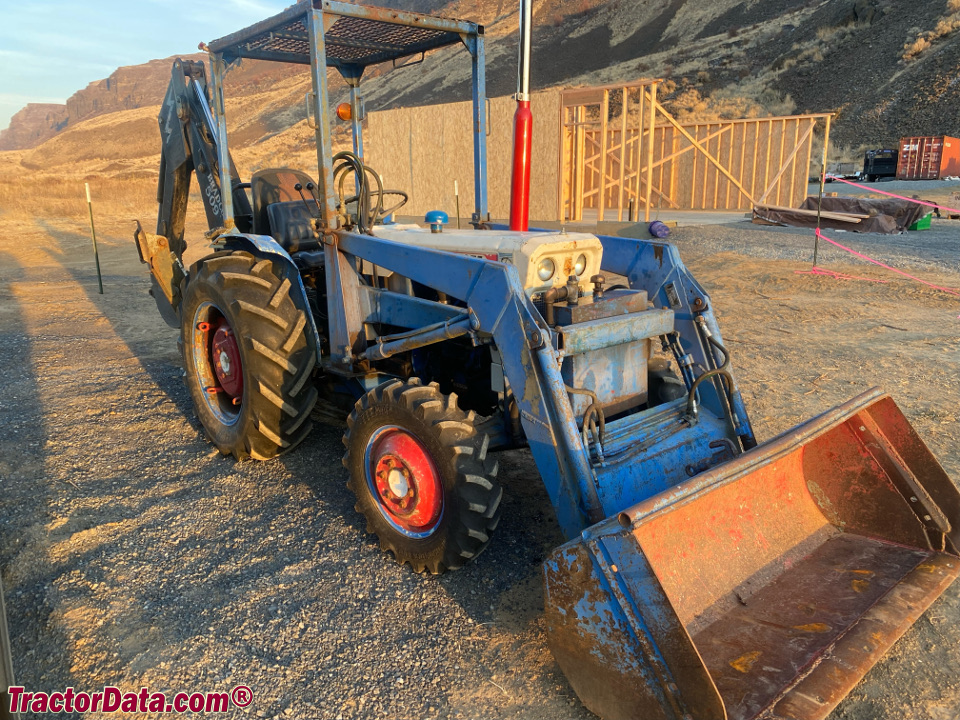

| Photos | |
 | |
 Satoh S670 photos... | |
| Capacity | |
| Fuel | 10.6 gal 40.1 L |
| Hydraulic system | 1.25 gal 4.7 L |
| Steering | 0.9 qts 0.9 L |
| Hydraulics | |
| Capacity | 1.25 gal 4.7 L |
| Pump flow | 5.15 gpm 19.5 lpm |
| Steering flow | 3.43 gpm 13.0 lpm |
| Steering cap. | 0.9 qts 0.9 L |
| Tractor hitch | |
| Rear Type | I |
| Control | position and draft control |
| Rear lift (at ends) | 2050 lbs 929 kg |
| Power Take-off (PTO) | |
| Rear PTO | live |
| Rear PTO Type | 540/1000 (1.375) |
| Dimensions & Tires | |
| 2WD Wheelbase | 60.6 inches 153 cm |
| 4WD Wheelbase | 75.4 inches 191 cm |
| Weight | 2313 to 2675 pounds |
| Front tire | 5.00-15 |
| 2WD Rear tire | 7-16 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| Battery AH | 70 |
| References | |
 | |
| Bison Diesel published in 1980, by Satoh |
