Deutz-Allis 5215
|
|
| Production | |
| Distributor | Deutz-Allis |
| Manufacturer | Hinomoto |
| Compact Utility tractor | |
| Original price was $8,000 in 1989 | |
| Variants | |
| 5215H | hydrostatic transmission |
| Deutz-Allis 5215 Engine | |
| Toyosha 1.0L 3-cyl diesel | |
 Engine details ... |
| Deutz-Allis 5215 Transmissions | |
| 9-speed synchromesh | |
| hydrostatic | |
 Transmission details ... |
| Deutz-Allis 5215 Power | |
| Engine (gross) | 18 hp 13.4 kW |
| PTO (claimed) | 15 hp 11.2 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | mechanical rear |
| Steering | manual |
| Steering | power *Optional with four-wheel drive. |
| Differential mechanical drum brakes | |
| Two-post fixed ROPS. Optional canopy and soft cab. | |
| Photos | |
 | |

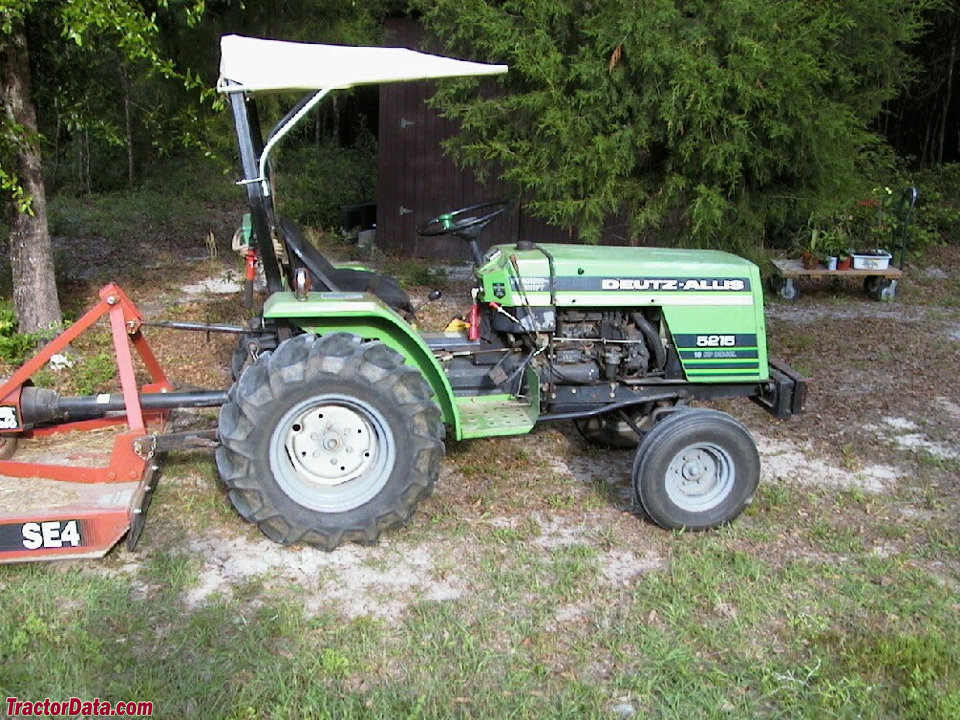

 Deutz-Allis 5215 photos... | |
| Capacity | |
| Fuel | 3.7 gal 14.0 L |
| Hydraulic system | 4.5 gal 17.0 L |
| Hydraulics | |
| Capacity | 4.5 gal 17.0 L |
| Valves | 0 to 2 |
| Pump flow | 3.56 gpm 13.5 lpm |
| Tractor hitch | |
| Rear Type | I |
| Rear lift (at ends) | 1,210 lbs 548 kg |
| Power Take-off (PTO) | |
| Rear PTO | transmission (gear) |
| independent (hydro) | |
| Rear PTO Type | 540 |
| Mid PTO | independent *Mid PTO available with hydrostatic transmission. |
| Mid PTO Type | 2114 |
| Dimensions & Tires | |
| Wheelbase | 55.3 inches 140 cm |
| Weight | 1518 to 1727 pounds |
| Front tire | 5.00-10 |
| 2WD Rear tire | 9.5-16 |
 Full dimensions and tires ... | |
| Deutz-Allis 5215 attachments | |
| 60" mid-mount mower deck | |
| snowblower | |
| blade | |
| front-end loader | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |

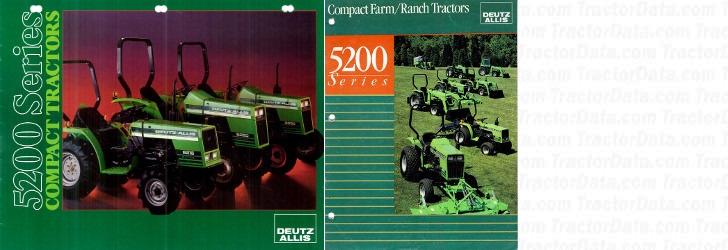

| 5200 Series Compact Tractors published in 1987, by Deutz-Allis | |
| 5200 Series published in 1988, by Deutz-Allis |
