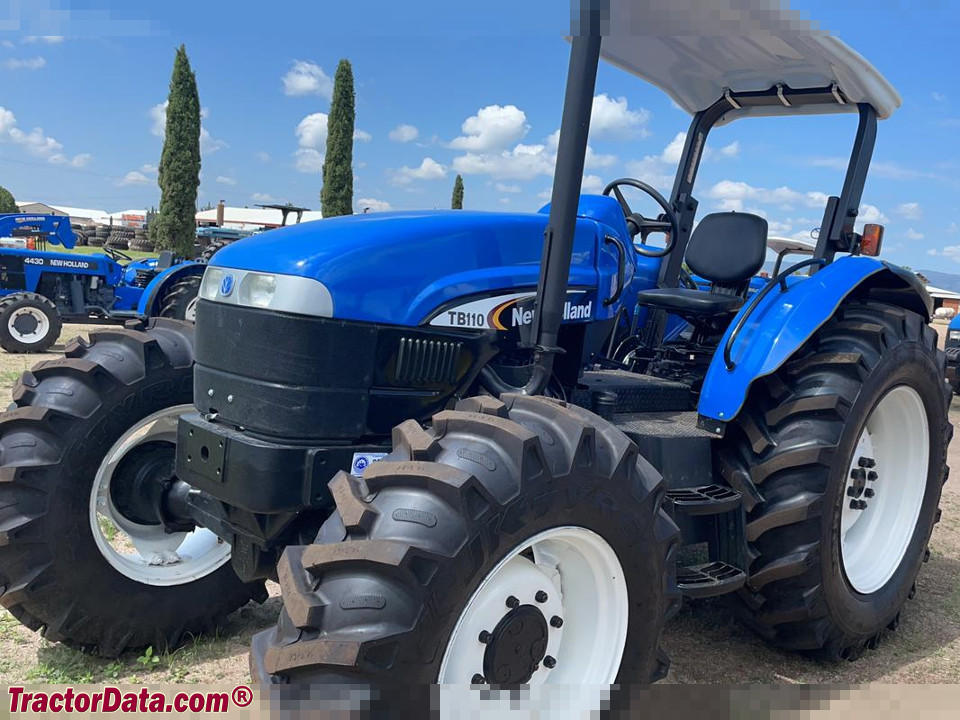

New Holland TB110
| | 2003 - 2006 |
| TB Series | | Utility tractor |
|
| Production |
| Manufacturer: | New Holland
|
| Type: | Utility tractor
|
| Variants |
| TB110LP: | low-profile
|
| New Holland TB110 Power |
| Engine: | 110 hp
82.0 kW
|
| PTO (claimed): | 90 hp
67.1 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | power
|
| Cab: | Two-post folding ROPS.
|
| Transmissions: | 8-speed gear
|
| | 16-speed two-speed power shift
|
| | 12-speed creeper
|
 Transmission details ... |
| Capacity |
| Fuel: | 37 gal
140.0 L
|
| Hydraulic system: | 15 gal
56.8 L
|
| Hydraulics |
| Type: | open center
|
| Capacity: | 15 gal
56.8 L
|
| Pressure: | 2500 psi
172.4 bar
|
| Valves: | 2
|
| Pump flow: | 9.3 gpm
35.2 lpm
|
| | 17.8 gpm
67.4 lpm *With optional auxiliary pump.
|
| Total flow: | 18.5 gpm
70.0 lpm
|
| | 27.1 gpm
102.6 lpm *Optional
|
| Steering flow: | 9.2 gpm
34.8 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Control: | mechanical top-link draft sensing
|
| Rear lift (at ends): | 4200 lbs
1905 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | wet disc
|
| Rear RPM: | 540/1000
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Charging amps: | 55
|
| Battery volts: | 12
|
