New Holland TL90

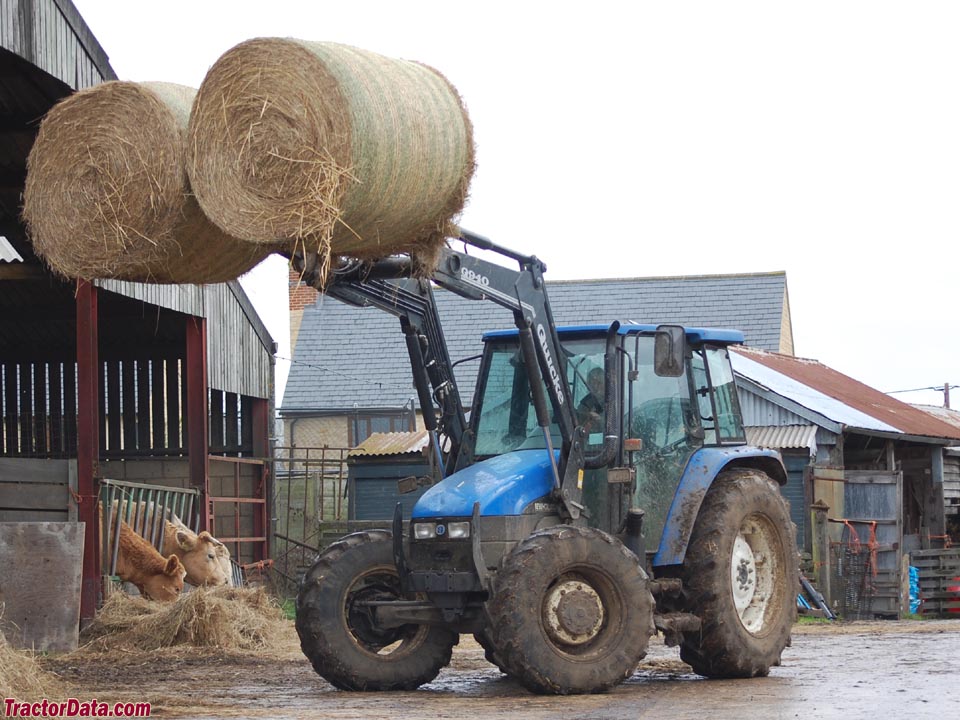

New Holland TL90 tractor photo
1999 - 2004
TL Series
Utility tractor
Series map:
TL80
TL90
TL100
80.0hp
90.0hp
95.0hp
Production
ManufacturerNew Holland
Utility tractor
Built in Jesi, Italy
New Holland TL90 Engine
Iveco 3.9L 4-cyl diesel
Fuel tank33.5 gal
126.8 L
Engine details ...
New Holland TL90 Power
Engine90 hp
67.1 kW
PTO (claimed)76 hp
56.7 kW
PTO (tested)81.5 hp
60.8 kW
Performance test details ...
Mechanical
Two- or four-wheel drive
Steeringhydrostatic power
Differential hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.
Hydraulics
Typeopen
Valves2 or 3
Pump flow14.5 gpm
54.9 lpm
Tractor hitch
Rear TypeII
Rear lift6550 lbs
2971 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000
Dimensions & Tires
Wheelbase92.2 inches (2WD)
234 cm
 91.1 inches (4WD)
231 cm
Weight6834 to 8585 pounds
Front tire10.00-16
2WD Rear tire540/65R-34
Full dimensions and tires ...
TL90 Serial Numbers
Location:Serial number stamped on the front axle support under the tractor hood.
Electrical
Groundnegative
Battery volts12
