Tractors > New Holland > TC30

New Holland TC30

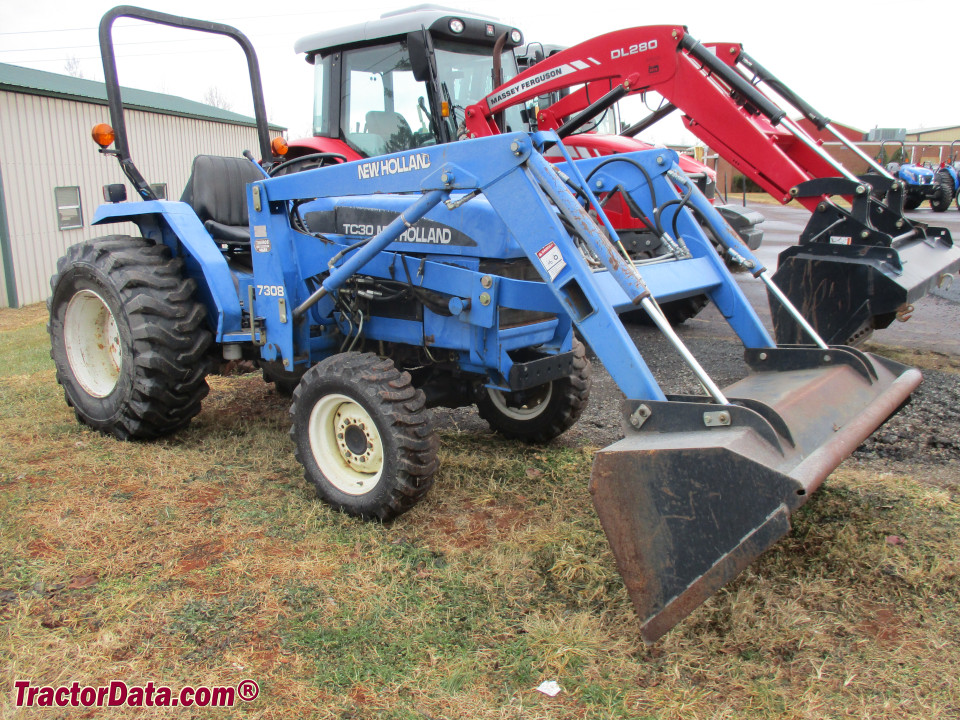

New Holland TC30 tractor photo
2001 - 2008
Compact Utility tractor
Next model:New Holland T1510






Production:

Manufacturer:New Holland


New Holland TC30 Engine:

   Shibaura 1.5L 3-cyl diesel
full engine details ...


Capacity:

Fuel:7.1 gal [26.9 L]


3-Point Hitch:

Rear Type:I
Rear lift (at 24"/610mm):1635 lbs [741 kg]


Power Take-off (PTO):

Rear PTO:live
Rear RPM:540
Mid PTO:optional
Mid RPM:2000


Dimensions & Tires:

Wheelbase:63 inches [160 cm]
Weight:2193 lbs [994 kg]
Front tire:5.50-16
Rear tire:11.2-24
full dimensions and tires ...


New Holland TC30 attachments:

 front-end loader
all TC30 attachments ...


TC30 Serial Numbers:


how to read serial numbers...



New Holland TC30 Power:

Engine:30 hp [22.4 kW]
Gear PTO (claimed):25.5 hp [19.0 kW]
Hydrostatic PTO (claimed):24 hp [17.9 kW]


Mechanical:

Chassis:4x2 2WD
 4x4 MFWD 4WD
Final drives:spur gear
Steering:power
Brakes:wet disc
Cab:Two-post foldable ROPS.


Hydraulics:

Type:open center
Pump flow:6.1 gpm [23.1 lpm]
Total flow:9.6 gpm [36.3 lpm]
Steering flow:3.5 gpm [13.2 lpm]


Electrical:

Ground:negative


Battery:

Number:1
Volts:12
