Allis Chalmers HD10 Tests

Allis Chalmers HD10 tractor photo
1940 - 1950
Agricultural Crawler tractor
Nebraska Tractor Test 361

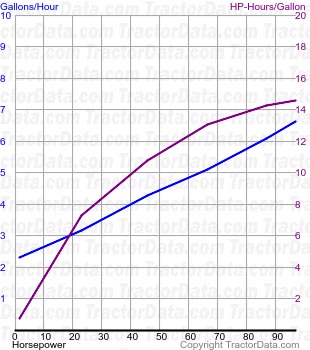

HD10 fuel use from test 361
Nebraska Tractor Test 361
Diesel 6-speed crawler
October 15 - 25, 1940
Link: Nebraska Tractor Test 361 file
Belt power (max)98.5 hp
73.5 kW
Drawbar performance
Max power82.19 hp
61.3 kW
Gear 2 used for power test.
Max pull15507 lbs
7033 kg
Gear 1 used for pull test.
