Allis Chalmers HD10 Engine

Allis Chalmers HD10 tractor photo
1940 - 1950
Agricultural Crawler tractor
Engine Detail
General Motors
blower diesel
liquid-cooled 2-cycle vertical I-head
Displacement284 ci
4.7 L
Bore/Stroke4.25x5.00 inches
108 x 127 mm
Rated RPM1600
Starter volts12
Oil capacity13 qts
12.3 L
Coolant capacity39 qts
36.9 L

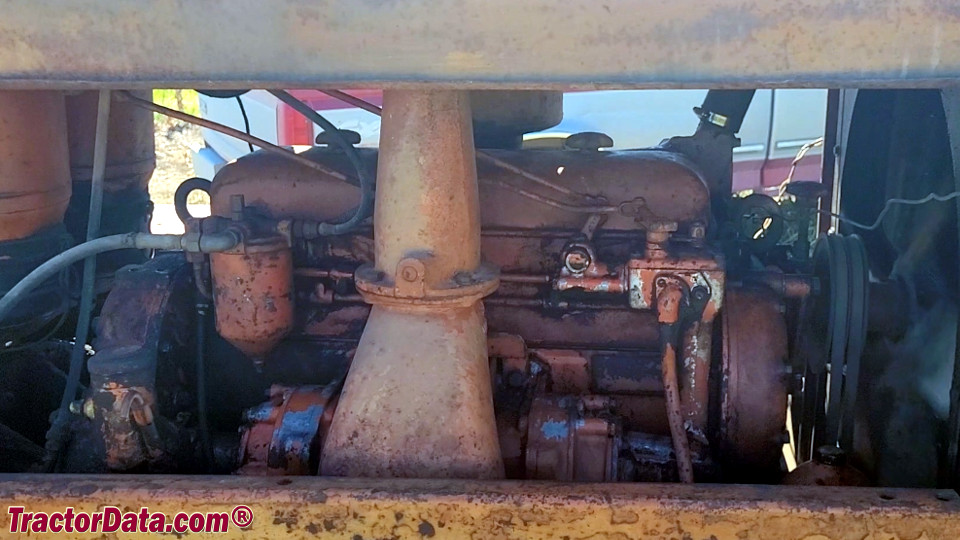

Allis Chalmers HD10 Engine
Allis Chalmers HD10 engine image
Image courtesy of Weston Jenkins
