Shibaura ST324
| | ST Series | | Compact Utility tractor |
|
Series map:
ST321
ST324
21.0hp
24.0hp
| Production |
| Manufacturer | Shibaura
|
| Compact Utility tractor |
| Built in Matsumoto, Japan |
| Shibaura ST324 Power |
| Engine | 24 hp
17.9 kW
|
| PTO (claimed) | 19 hp
14.2 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | mechanical rear
|
| Power steering |
| Wet disc brakes |
| Two-post folding ROPS. |
| Photos |
| No photos of the Shibaura ST324 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Capacity |
| Fuel | 5.3 gal
20.1 L
|
| Hydraulic system | 4.2 gal
15.9 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 4.2 gal
15.9 L
|
| Pressure | 1849 psi
127.5 bar
|
| Pump flow | 4.9 gpm
18.5 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Rear lift | 1474 lbs
668 kg
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| Rear PTO Type | 540 (1.375)
|
| Engine RPM | 561@2600
|
| Mid PTO | optional
|
| Mid PTO Type | 2000
|
| Engine RPM | 2040@2600
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 40
|
| Charging volts | 14
|
| Battery volts | 12
|
| References |
 |

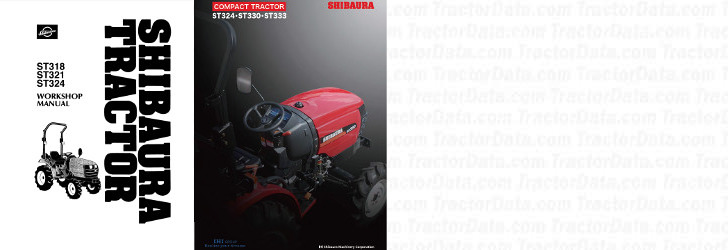

| ST318 ST321 ST324 Workshop Manual |
| Compact Tractor ST324 - ST330 - ST333 published in 2016, by Shibaura |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on April 8, 2020 |
