Volvo T430
|
|
| Production | |
| Manufacturer | Volvo |
| Utility tractor | |
| Total built | 23764 |
| Volvo T430 Engine | |
| Perkins 2.5L 3-cyl diesel | |
| Fuel tank | 11.9 gal 45.0 L |
 Engine details ... | |
| Volvo T430 Transmissions | |
| 8-speed gear | |
| 16-speed two-speed power shift | |
 Transmission details ... |
| Volvo T430 Power | |
| Engine | 42.5 hp 31.7 kW |
| Mechanical | |
| Two-wheel drive | |
| Steering | mechanical |
| Open operator station. Cab optional. | |
| Photos | |
 | |

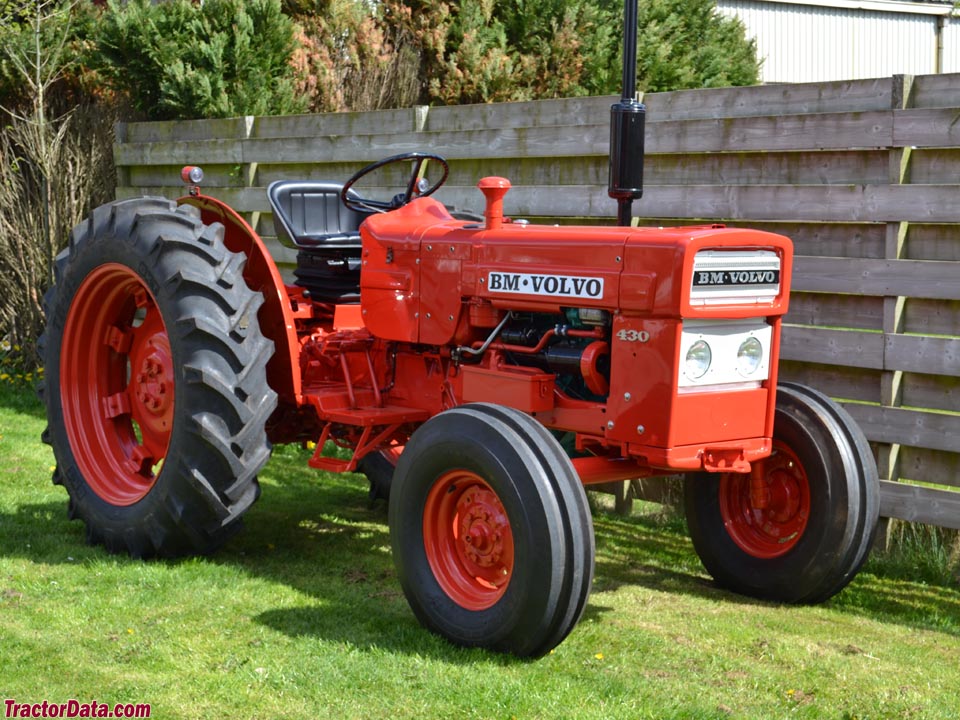

 Volvo T430 photos... | |
| Hydraulics | |
| Pump flow | 8.7 gpm 32.9 lpm |
| Tractor hitch | |
| Rear lift | 2756 lbs 1250 kg |
| Power Take-off (PTO) | |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@1770 |
| Dimensions & Tires | |
| Wheelbase | 82.7 inches 210 cm |
| Weight | 5291 lbs 2399 kg |
| Front tire | 7.50-16 |
| Rear tire | 13.6-36 |
 Full dimensions and tires ... | |
| References | |
 | |
| Volvo BM T430 published in 1976 |
