McCormick Intl MTX135

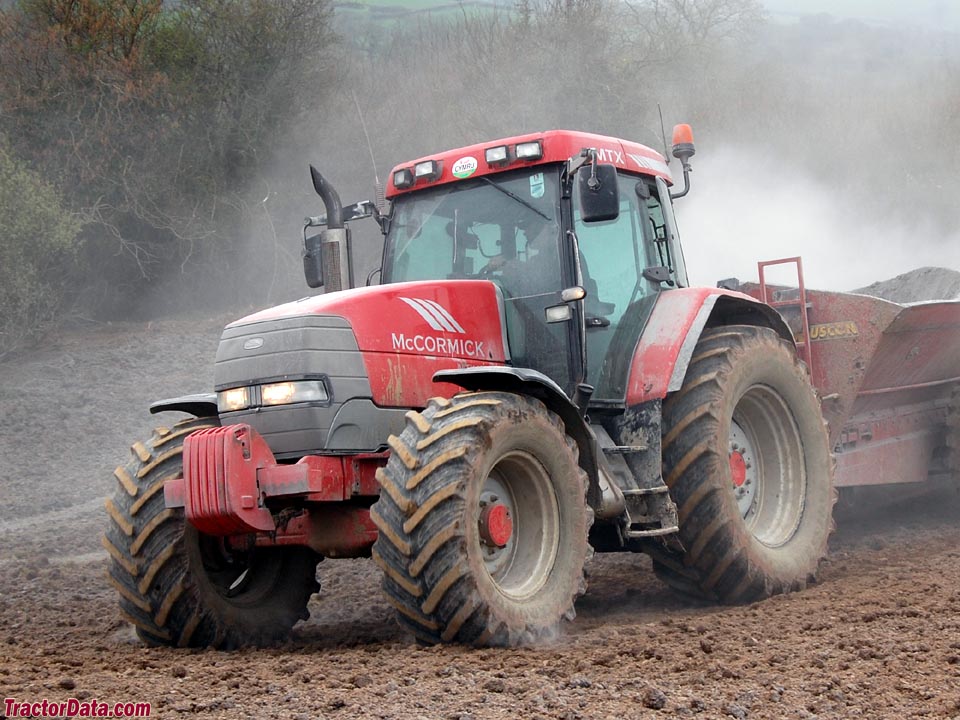

McCormick Intl MTX135 tractor photo
2004 - 2007
MTX Series
Row-Crop tractor
Manufacturer:McCormick Intl
Type:Row-Crop tractor
Factory:Doncaster, England
McCormick Intl MTX135 Power
Engine:131 hp
97.7 kW
PTO (claimed):112 hp
83.5 kW
Drawbar (tested):95.16 hp
71.0 kW
PTO (tested):114.17 hp
85.1 kW
power test details ...
McCormick Intl MTX135 Engine
Iveco 6.8L 6-cyl diesel
Fuel tank:70.0 gal
264.9 L
Engine details ...
Chassis:4x4 MFWD 4WD
Steering:hydrostatic power
Brakes:differential hydraulic wet disc
Cab:Cab standard with air-conditioning.
Transmissions:16-speed four-speed power shift
Transmission details ...
Type:pressure flow compensating
Pump flow:28.8 gpm
109.0 lpm
Tractor hitch
Rear Type:IIIN
Control:electronic lower link draft sensing
Rear lift:12945 lbs
5871 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:107.09 inches
272 cm
Weight:13230 lbs
6001 kg
Front tire:14.9R28
Rear tire:18.4R38
Full dimensions and tires ...
Charging system:alternator
Charging amps:95
 120 (optional)
Battery volts:12
