McCormick Intl MC90
|
|
| Production | |
| Manufacturer | McCormick Intl (a part of Argo) |
| Utility tractor | |
| Built in Doncaster, England | |
| McCormick Intl MC90 Engine | |
| Perkins 4.0L 4-cyl diesel | |
| Fuel tank | 51.8 gal 196.1 L |
 Engine details ... | |
| McCormick Intl MC90 Transmissions | |
| 16-speed partial power shift | |
| 32-speed partial power shift with creeper | |
 Transmission details ... |
| McCormick Intl MC90 Power | |
| Engine | 90 hp 67.1 kW |
| Mechanical | |
| Four-wheel drive | |
| Differential lock | wet disc |
| Power steering | |
| Two-post folding ROPS. Cab available with air-conditioning. | |
| Photos | |
| No photos of the McCormick Intl MC90 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. | |
| Hydraulics | |
| Type | axial piston pump |
| Pump flow | 28.8 gpm 109.0 lpm |
| SCV flow | 25.1 gpm 95.0 lpm |
| Tractor hitch | |
| Rear Type | IIIN |
| Control | electronic lower lift |
| Rear lift (at 24"/610mm) | 8201 lbs 3719 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | electro-hydraulic |
| Rear PTO Type | 540/1000 (1.375) |
| Engine RPM | 540@1877 |
| 1000@2200 | |
| Dimensions & Tires | |
| Wheelbase | 95.4 inches 242 cm |
| Weight | 10470 to 11900 pounds |
| Front tire | 13.6R28 |
| Rear tire | 16.9R38 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 95 |
| Battery volts | 12 |
| References | |
 | |

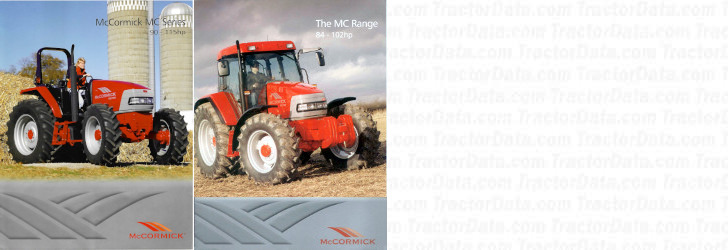

| MC Series published in 2000, by McCormick | |
| MC Series published in 2001, by McCormick |
