New Holland 9280

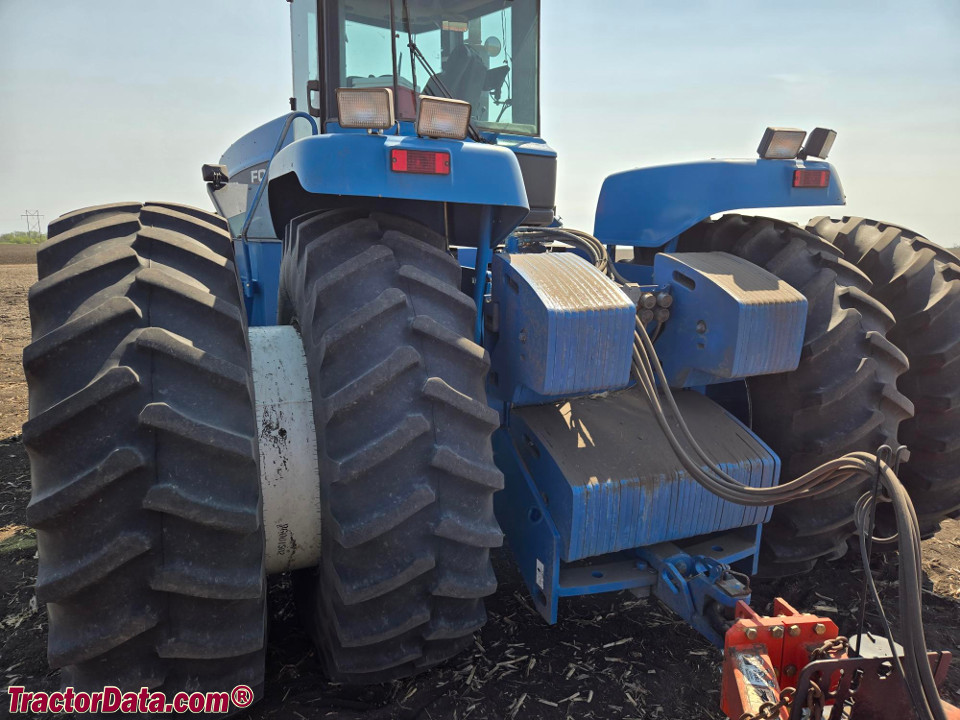

New Holland 9280 tractor photo
1994 - 1995
80 Series
Four-wheel Drive (4WD) tractor
Versatile built
Series map:
9280
9480
250.0hp
300.0hp
Production
DistributorNew Holland
ManufacturerVersatile
Four-wheel Drive (4WD) tractor
Built in Winnigpeg, Manitoba, Canada
Original price was $93,500 in 1995
New Holland 9280 Engine
Cummins 10.0L 6-cyl diesel
Engine details ...
New Holland 9280 Power
Engine250 hp
186.4 kW
PTO (claimed)220 hp
164.1 kW
Mechanical
Four-wheel drive
Final drivesoutboard planetary
Articulated power steering
Hydraulic disc brakes
Cab standard with air-conditioning.
Photos
No photos of the New Holland 9280 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel245 gal
927.3 L
Hydraulic system15.3 gal
57.9 L
Hydraulics
Typeclosed center load-sensing
Capacity15.3 gal
57.9 L
Pressure2500 psi
172.4 bar
Pump flow25 gpm
94.6 lpm
Steering flow27 gpm
102.2 lpm
Tractor hitch
Rear TypeIVN
Controlelectronic position control
Rear lift (at 24"/610mm)12753 lbs
5784 kg
Power Take-off (PTO)
Rear PTOindependent
Rear RPM1000 (1.75)
Engine RPM1000@2100
Dimensions & Tires
Wheelbase133.1 inches
338 cm
Weight23190 lbs
10518 kg
Front tire20.8x38
Rear tire20.8x38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps130
Batteries3
Battery CCA625
Battery volts12
Battery Group31
References
9280 references literature
The new Versatile 80 Series published in 1994, by Ford
80 Series Versatile 4WD Tractors published in 1994, by New Holland
