Fendt Xylon 524

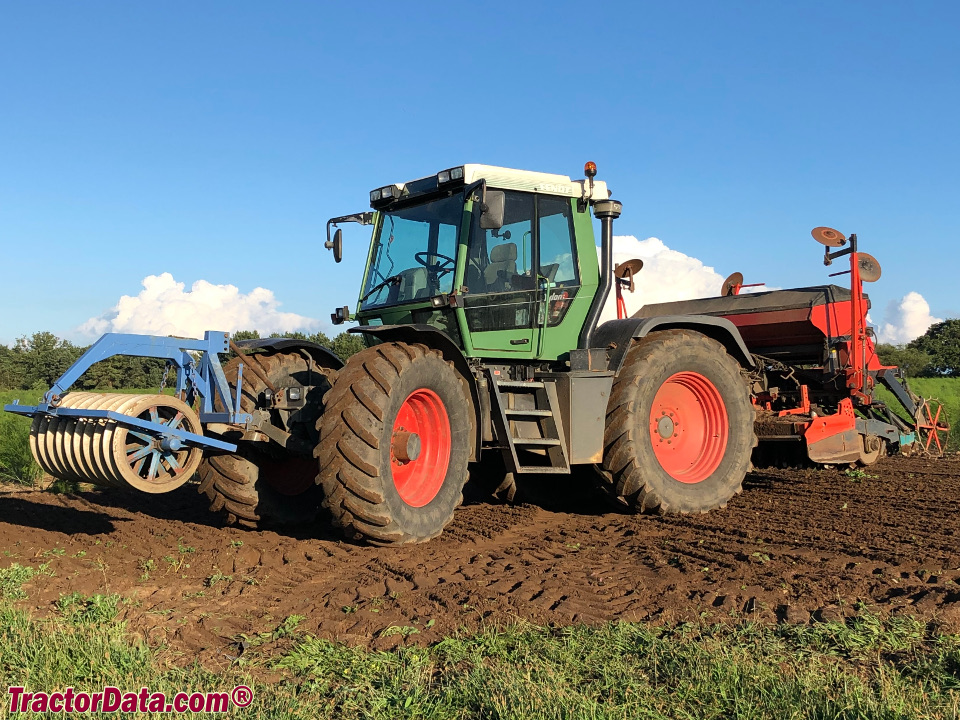

Fendt Xylon 524 tractor photo
1995 - 2004
Xylon Series
Tool Carrier tractor
Series:Xylon 522Xylon 524
Production
Manufacturer:Fendt
Type:Tool Carrier tractor
Fendt Xylon 524 Power
Engine:147 hp
109.6 kW
Fendt Xylon 524 Engine
MAN 4.6L 4-cyl diesel
Fuel tank:55.5 gal
210.1 L
 60.8 gal
230.1 L
Engine details ...
Mechanical
Chassis:4x4 4WD
Transmission:44-speed
Transmission details ...
Hydraulics
Pump flow:26.9 gpm
101.8 lpm
Tractor hitch
Rear lift:17104 lbs
7758 kg
Power Take-off (PTO)
Rear RPM:540, 750, 1000, 1400
Dimensions & Tires
Wheelbase:120.1 inches
305 cm
Weight:14,894 lbs
6755 kg
Front tire:520/70R30
Rear tire:580/70R38
Full dimensions and tires ...
