Fendt Favorit 515C
| | 1995 - 1999 |
| Favorit 500C Series |
|
| Production |
| Manufacturer: | Fendt
|
| Fendt Favorit 515C Power |
| Engine: | 150 hp
111.9 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Steering: | power
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard with heater. Air-conditioning optional.
|
| Transmission: | 44-speed four-speed power shift
|
 Transmission details ... |
| Hydraulics |
| Pump flow: | 26.9 gpm
101.8 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Control: | lower-link draft sensing
|
| Rear lift: | 15181 lbs
6886 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540/750/1000/1400
|
| Front PTO: | independent*Optional
|
| Front RPM: | 1000
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
| Battery AH: | 135
|
| Page information |
| Last update: | October 25, 2021
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

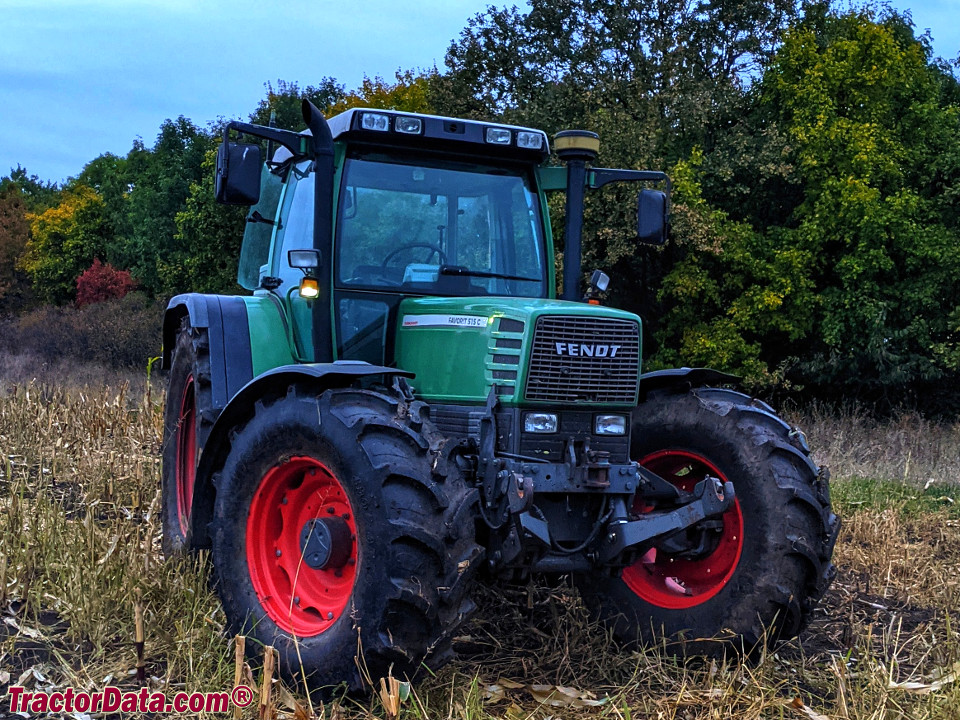

Fendt Favorit 515C photos...
