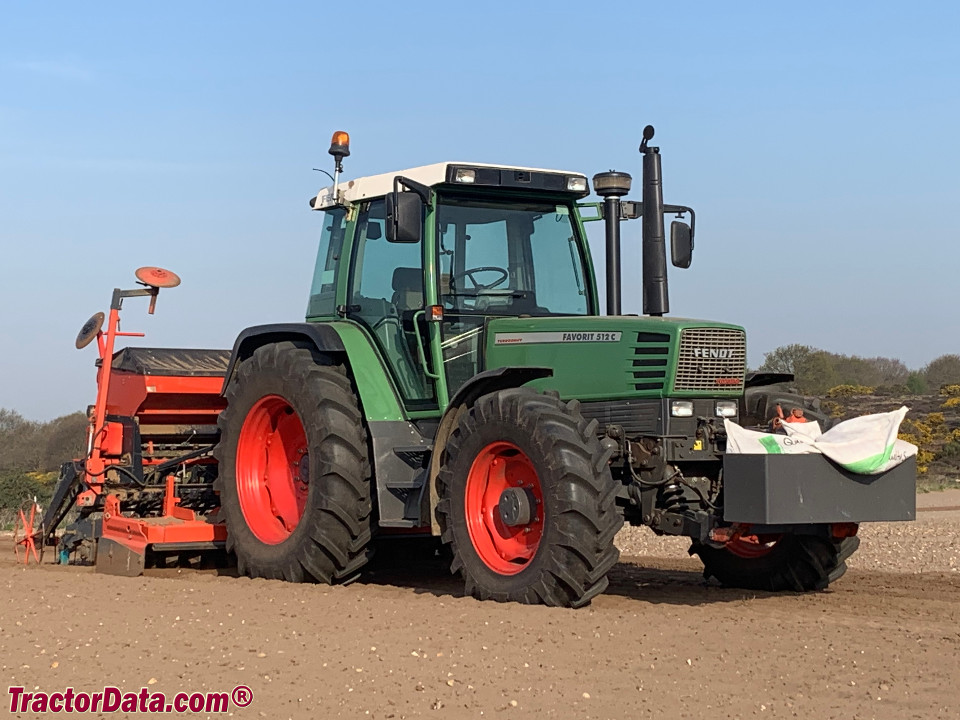

Fendt Favorit 512C
| | 1993 - 1999 |
| Favorit 500C Series |
|
| Production |
| Manufacturer: | Fendt
|
| Fendt Favorit 512C Power |
| Engine: | 125 hp
93.2 kW
|
| Mechanical |
| Chassis: | 4x4 MFWD 4WD
|
| Differential lock: | electro-hydraulic front and rear
|
| Steering: | power
|
| Brakes: | hydraulic disc
|
| Cab: | Cab standard with heater. Air-conditioning optional.
|
| Transmission: | 44-speed four-speed power shift
|
 Transmission details ... |
| Hydraulics |
| Pump flow: | 26.9 gpm
101.8 lpm
|
| Tractor hitch |
| Rear Type: | III/II
|
| Control: | lower-link draft sensing
|
| Rear lift: | 15181 lbs
6886 kg
|
| Power Take-off (PTO) |
| Rear PTO: | independent
|
| Clutch: | electro-hydraulic
|
| Rear RPM: | 540/750/1000/1400
|
| Front PTO: | independent*Optional
|
| Front RPM: | 1000
|
| Electrical |
| Ground: | negative
|
| Charging system: | alternator
|
| Battery volts: | 12
|
| Battery AH: | 135
|
| Page information |
| Last update: | May 20, 2022
|
| Copyright: | Copyright 2022 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2022 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
