Fendt Farmer 412 Vario

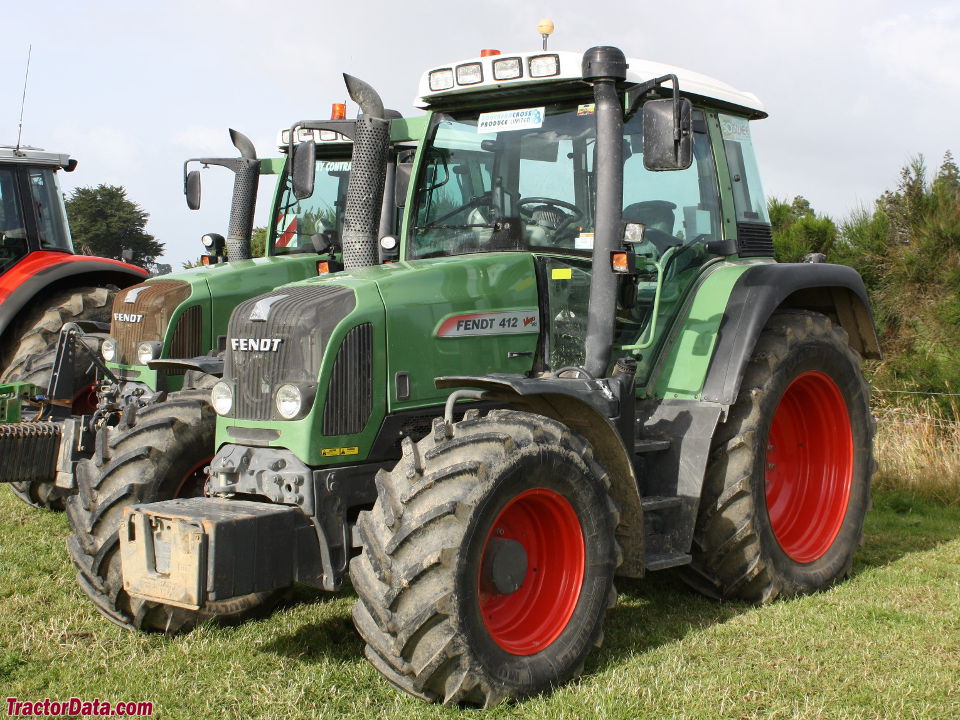

Fendt Farmer 412 Vario tractor photo
2001 - 2006
Model year
Farmer 400 Series
Row-Crop tractor
Series:Farmer 411 VarioFarmer 412 Vario
Type:Row-Crop tractor
Fendt Farmer 412 Vario Power
Engine:120 hp
89.5 kW
Drawbar (tested):85.15 hp
63.5 kW
PTO (tested):115.9 hp
86.4 kW
power test details ...
Fendt Farmer 412 Vario Engine
Deutz 3.8L 4-cyl diesel
Fuel tank:43.6 gal
165.0 L
Engine details ...
Chassis:4x4 MFWD 4WD
Brakes:hydraulic wet disc
Cab:Cab standard with heater. Air-conditioning optional.
Transmission:continuously variable transmission
Transmission details ...
Pump flow:19.8 gpm
74.9 lpm
Tractor hitch
Rear Type:III
Rear lift:14482 lbs
6569 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/750/1000
Engine RPM:540@1932
Front PTO:independent*Optional
Front RPM:540
Dimensions & Tires
Wheelbase:95.2 inches
241 cm
Weight:11552 lbs
5239 kg
Front tire:540/65R24
Rear tire:600/65R38
Full dimensions and tires ...
Charging system:alternator
Charging amps:143
Battery volts:12
Battery AH:90
