Fendt Farmer 410 Vario

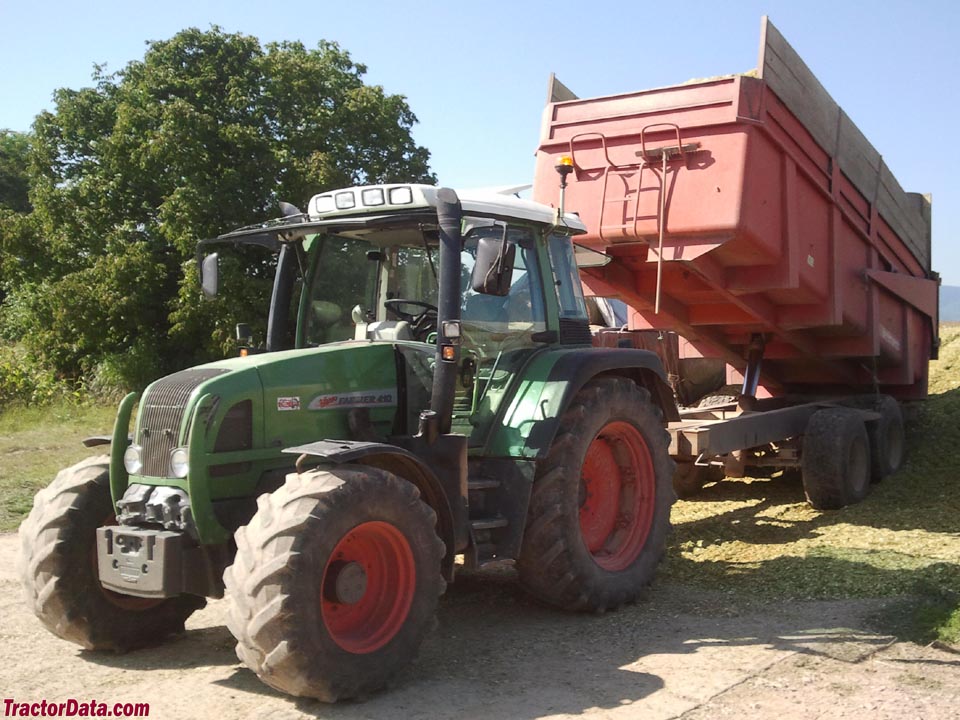

Fendt Farmer 410 Vario tractor photo
1999 - 2006
Model year
Farmer 400 Series
Row-Crop tractor
Series:Farmer 409 VarioFarmer 410 VarioFarmer 411 Vario
Production
Manufacturer:Fendt
Type:Row-Crop tractor
Fendt Farmer 410 Vario Power
Engine:98.6 hp
73.5 kW
Drawbar (tested):70.26 hp
52.4 kW
PTO (tested):96.3 hp
71.8 kW
power test details ...
Fendt Farmer 410 Vario Engine
Deutz 3.8L 4-cyl diesel
Fuel tank:43.6 gal
165.0 L
Engine details ...
Mechanical
Chassis:4x4 MFWD 4WD
Steering:power
Brakes:hydraulic wet disc
Cab:Cab standard with heater. Air-conditioning optional.
Transmission:continuously variable transmission
Transmission details ...
Hydraulics
Pump flow:19.8 gpm
74.9 lpm
Tractor hitch
Rear Type:III
Rear lift:14482 lbs
6569 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/750/1000
Engine RPM:540@1932
1000@1937
Front PTO:independent*Optional
Front RPM:540
 1000
Dimensions & Tires
Wheelbase:95.2 inches
241 cm
Weight:11486 lbs
5210 kg
Front tire:420/70R24
Rear tire:480/70R38
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:143
Battery volts:12
Battery AH:90
