Fendt Farmer 309

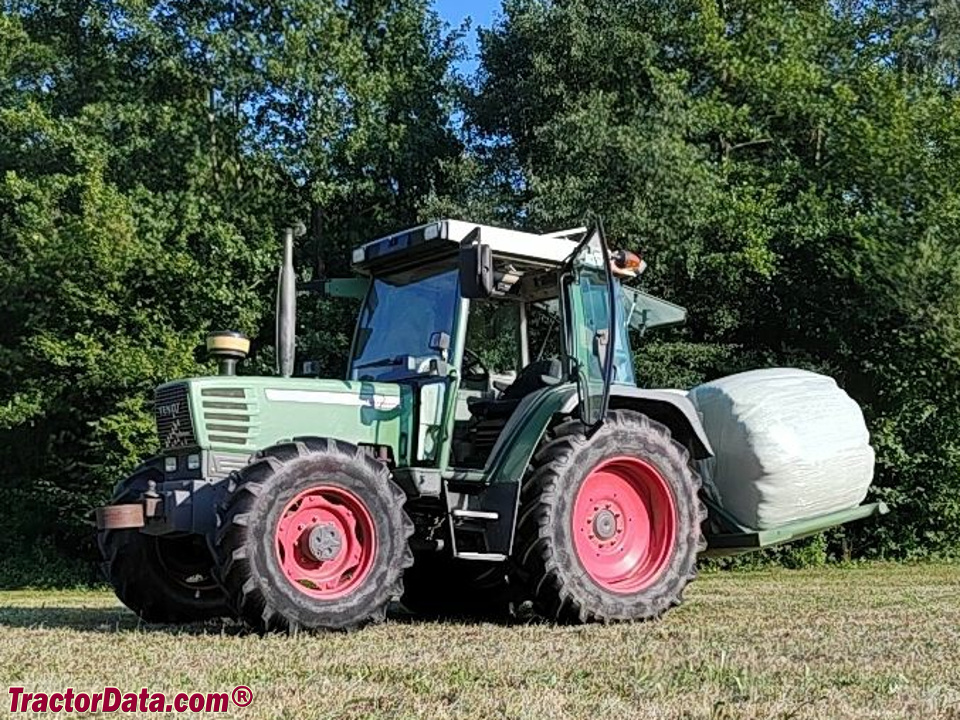

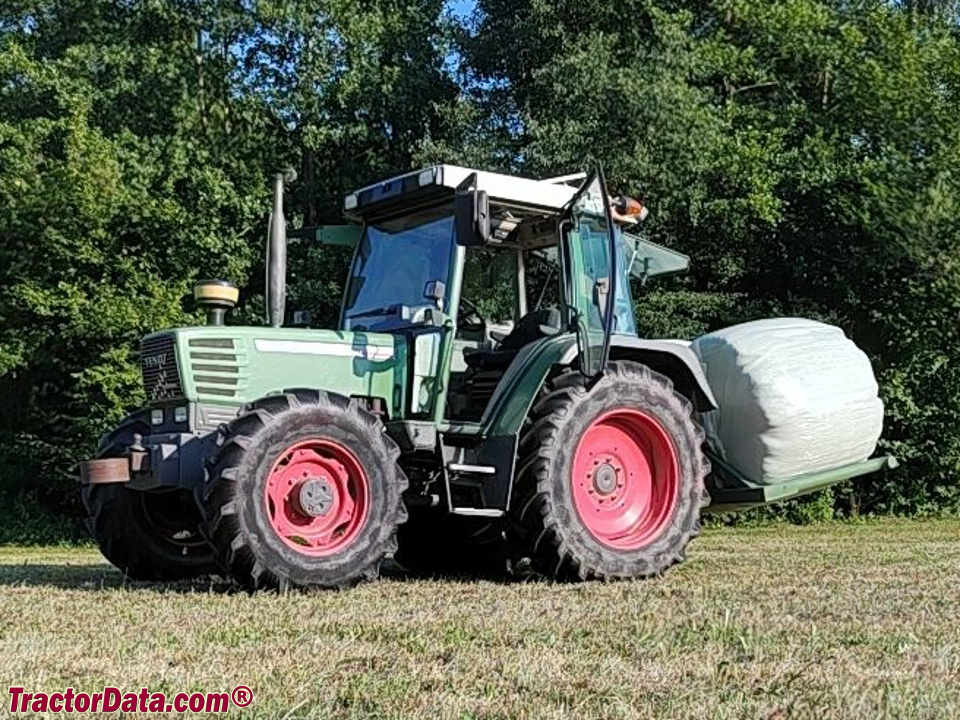

Fendt Farmer 309 tractor photo
1993 - 2000
Farmer 300 Series
Row-Crop tractor
Series map:
Farmer 308
Farmer 309
Farmer 310
71.6kw
70.8kw
78.3kw
Production
ManufacturerFendt
Row-Crop tractor
Fendt Farmer 309 Engine
MWM 4.2L 4-cyl diesel
Fuel tank28.3 gal
107.1 L
Engine details ...
Fendt Farmer 309 Power
Engine95 hp
70.8 kW
Mechanical
Four-wheel drive
Differential lockelectro-hydraulic front and rear
Power steering
Hydraulic disc brakes
Cab standard with air-conditioning.
Hydraulics
Pump flow19.8 gpm
74.9 lpm
Tractor hitch
Rear lift10930 lbs
4957 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540/750/1000
Front PTOindependent OptOptional
Clutchelectro-hydraulic
Front PTO Type1000
Dimensions & Tires
Wheelbase89.3 inches
226 cm
Weight9591 lbs
4350 kg
Front tire380/70R24
Rear tire480/70R34
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps95
Battery volts12
Battery AH110
References
Farmer 309 references literature
Farmer 307 - 308 - 309 - 310 - 311 - 312 published in 1993, by Fendt
