Fendt Farmer 308LS

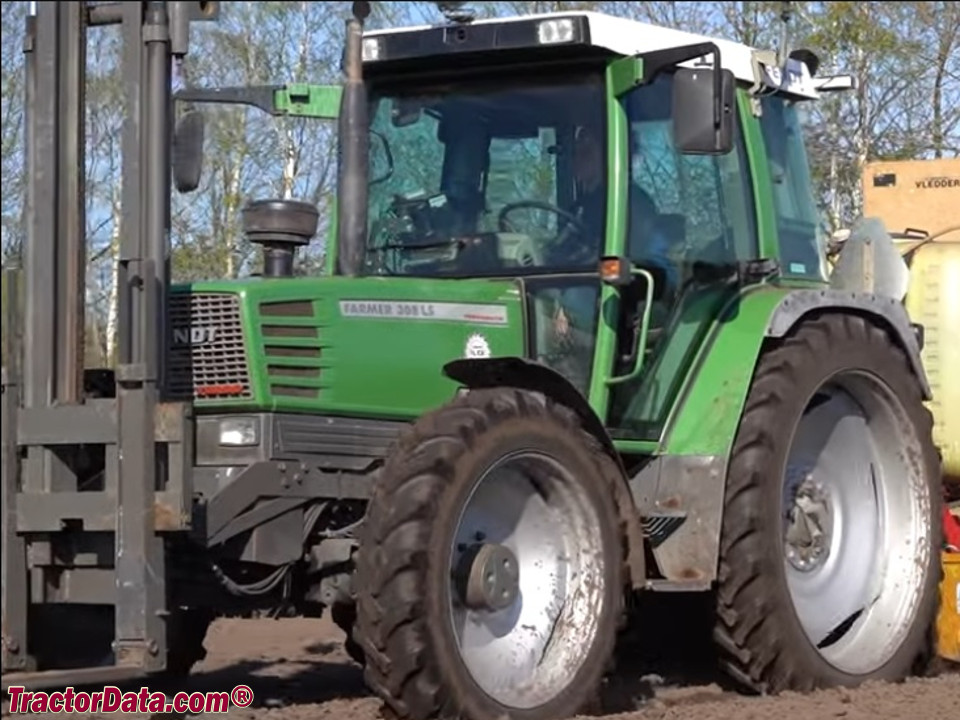

Fendt Farmer 308LS tractor photo
1980 - 1990
Farmer 300 Series
Row-Crop tractor
Series:Farmer 306LSFarmer 308LSFarmer 309LS
Type:Row-Crop tractor
Fendt Farmer 308LS Power
Engine:78 hp
58.2 kW
Fendt Farmer 308LS Engine
MWM 4.2L 4-cyl diesel
Fuel tank:28.3 gal
107.1 L
Engine details ...
Chassis:4x2 2WD
 4x4 MFWD 4WD
Brakes:wet disc
Cab:Cab standard with heat. Air-conditioning optional.
Transmissions:15-speed synchromesh
Transmission details ...
No photos of the Fendt Farmer 308LS are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Type:open center
Pump flow:10.6 gpm
40.1 lpm
Steering flow:9.3 gpm
35.2 lpm
Tractor hitch
Rear Type:II
Control:position and draft control
Rear lift:8158 lbs
3700 kg
Front Hitch:II*Optional
Front lift:5534 lbs
2510 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540/1000
Front PTO:independent
Front RPM:1000
Dimensions & Tires
2WD Wheelbase:91.3 inches
231 cm
4WD Wheelbase:83.3 inches
211 cm
Weight:8080 to 8532 pounds
Front tire:7.50-20
2WD Rear tire:16.9R34
Full dimensions and tires ...
Charging system:alternator
Charging amps:33
Battery volts:12
Battery AH:110
