SAME Laser 110
|
|
| Production | |
| Manufacturer | SAME |
| Row-Crop tractor | |
| SAME Laser 110 Engine | |
| SAME 5.7L 6-cyl diesel | |
| Fuel tank | 60.8 gal 230.1 L |
 Engine details ... | |
| SAME Laser 110 Transmissions | |
| 12-speed synchronized | |
| 24-speed two-speed power shift | |
| 20-speed creeper | |
 Transmission details ... |
| SAME Laser 110 Power | |
| Engine | 110 hp 82.0 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | mechanical rear |
| Power steering | |
| Hydraulic wet disc brakes | |
| Cab standard with available air-conditioning. | |

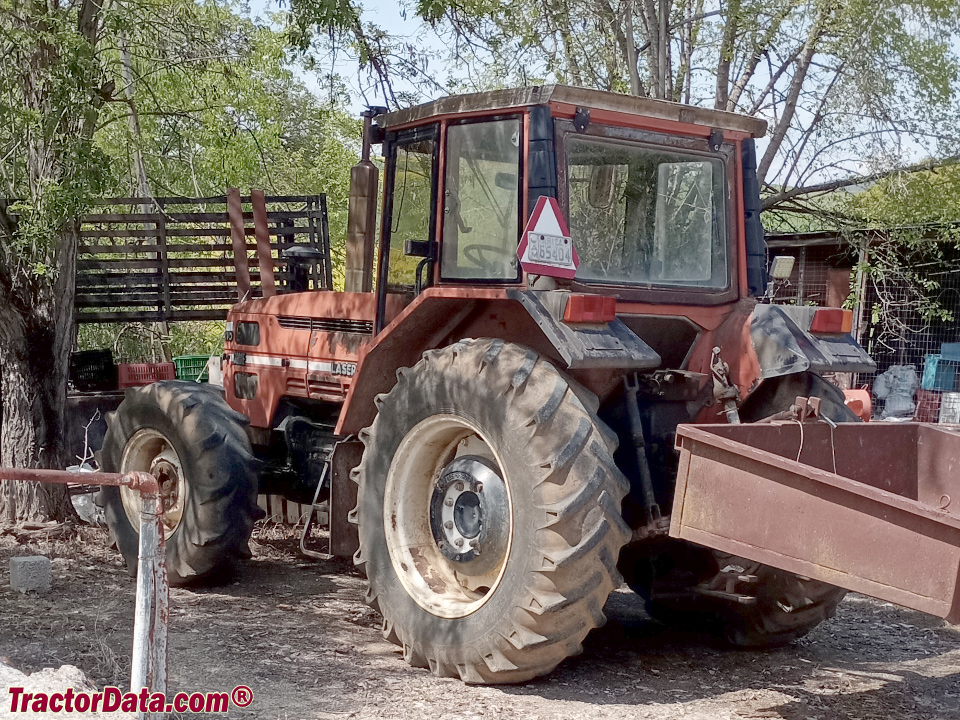

| Photos | |
 | |
 SAME Laser 110 photos... | |
| Hydraulics | |
| Pump flow | 16.9 gpm 64.0 lpm |
| Tractor hitch | |
| Rear Type | II |
| Control | position and draft control |
| Rear lift | 10143 lbs 4600 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic wet disc |
| Rear PTO Type | 540/1000 (1.375) |
| Dimensions & Tires | |
| 2WD Wheelbase | 108.9 inches 276 cm |
| 4WD Wheelbase | 108.3 inches 275 cm |
| Weight | 9127 to 10758 pounds |
| Front tire | 10.00-16 |
| 2WD Rear tire | 18.4/15-34 |
 Full dimensions and tires ... | |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| References | |
 | |
| 110-130-150: The New High Power Tractors published in 1984, by SAME |
