Yanmar YM165 Engine
|
|
| Engine Detail | |
| Yanmar 2TR13A | |
| diesel | |
| 2-cylinder | |
| liquid-cooled inline | |
| Displacement | 40.4 ci 0.7 L |
| Bore/Stroke | 2.95x2.95 inches 75 x 75 mm |
| Power | 16 hp 11.9 kW |
| Air cleaner | dry |
| Pre-heating | coolant heater OptOptional |
| Compression | 23:1 |
| Rated RPM | 2700 |
| Operating RPM | 2200-2700 |
| Firing order | 1-2 |
| Starter volts | 12 |
| Coolant capacity | 3.4 qts 3.2 L |
| Intake valve clearance | 0.008 inches 0.203 mm |
| Exhaust valve clearance | 0.008 inches 0.203 mm |

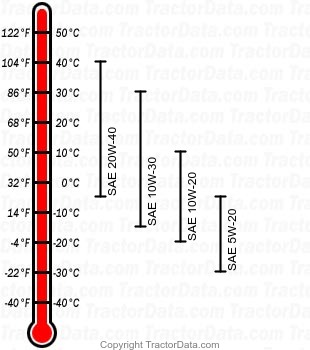

| Engine Oil | |
| |
| Oil capacity | 2.3 qts 2.2 L |
| Oil change | 100 h |
