Yanmar YM155
|
|
| Production | |
| Manufacturer | Yanmar |
| Sub-Compact Utility tractor | |
| Original price was $5,000 in 1979 | |
| Variants | |
| YM155 | 2WD |
| YM155D | 4WD |
| Yanmar YM155 Engine | |
| Yanmar 0.7L 2-cyl diesel | |
| Fuel tank | 4 gal 15.1 L |
 Engine details ... | |
| Yanmar YM155 Transmission | |
| 6-speed gear | |
 Transmission details ... |
| Yanmar YM155 Power | |
| Engine | 15 hp 11.2 kW |
| Mechanical | |
| Two- or four-wheel drive | |
| Differential lock | mechanical rear |
| Manual steering | |
| Mechanical drum brakes | |
| Open operator station. | |

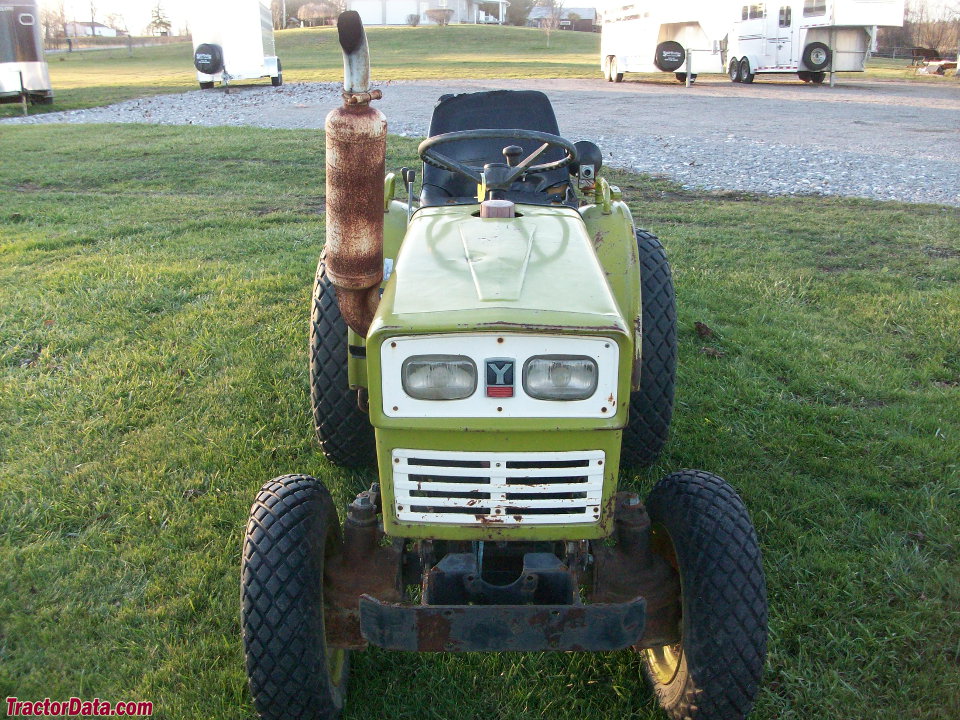

| Photos | |
 | |
 Yanmar YM155 photos... | |
| Hydraulics | |
| Type | open center |
| Pump flow | 3.8 gpm 14.4 lpm |
| Tractor hitch | |
| Rear Type | I |
| Rear lift | 1210 lbs 548 kg |
| Power Take-off (PTO) | |
| Clutch | overrunning |
| Rear PTO Type | 540 (1.375) |
| Engine RPM | 540@2540 |
| 770@2540 | |
| Dimensions & Tires | |
| Wheelbase | 48.8 inches 123 cm |
| Weight | 1057 to 1145 pounds |
| Front tire | 4.50-10 |
| 2WD Rear tire | 8-16 |
 Full dimensions and tires ... | |
| Yanmar YM155 attachments | |
| 45" mid-mount mower deck | |
| front-end loader | |
| backhoe | |
 Attachment details ... |
| Electrical | |
| Ground | negative |
| Battery volts | 12 |
| Questions | |
| I purchased a YFL-575 loader from a 155D and I'm having trouble finding and sort of schematics or even pictures to help me figure out how/where to connect the hydraulic lines.
Assuming you did not get a loader with a separate pump (driven off the front PTO) then Yanmar intended for the B440 selector valve to be installed. The hydraulics are installed in series from the diverter block to the selector valve. You could use the loader or hitch, but not both. | |
| Email: Peter@TractorData.com |

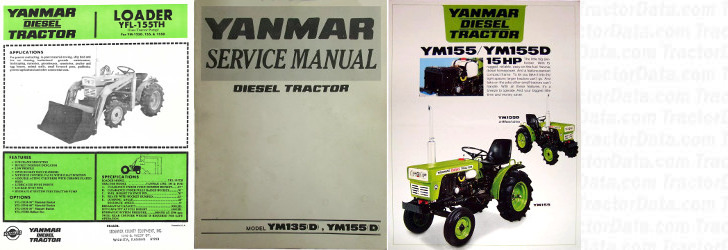

| References | |
 | |
| YFL-155TD Loaders published by Yanmar | |
| Service Manual Model YM135(D), YM155(D) (AOD1048) published in 1976 | |
| YM155/YM155D published in 1976, by Yanmar |
