International Harvester 956

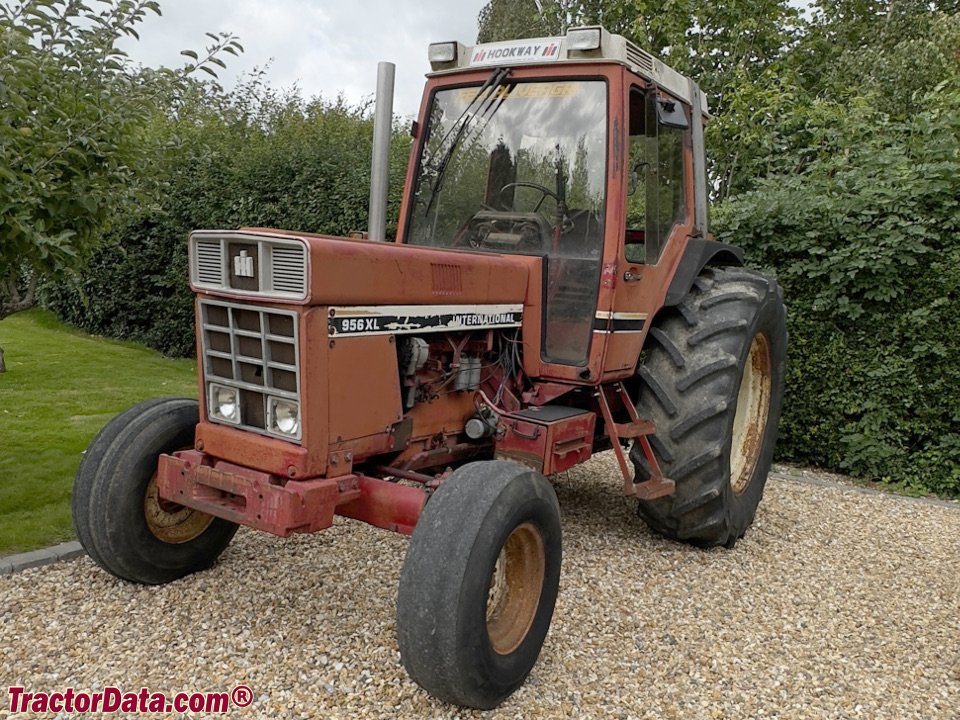

International Harvester 956 tractor photo
1982 - 1985
56XL Series
Row-Crop tractor
Series map:
856XL
956
1056
63.4kw
70.8kw
78.3kw
Production
ManufacturerInternational Harvester
Row-Crop tractor
Built in Neuss, Germany
Variants
956XLdeluxe cab
International Harvester 956 Engine
International Harvester 5.9L 6-cyl diesel
Engine details ...
International Harvester 956 Power
Engine (net)95 hp
70.8 kW
PTO (claimed)91 hp
67.9 kW
Mechanical
Two- or four-wheel drive
Final drivesplanetary
Differential lockmechanical rear
Power steering
Four-post ROPS. Standard cab and deluxe XL cab optional.
Capacity
Fuel37 gal
140.0 L
Hydraulic system12.2 gal
46.2 L
Hydraulics
Typeopen center
Capacity12.2 gal
46.2 L
Pressure2346 psi
161.8 bar
Pump flow11.1 gpm
42.0 lpm
Tractor hitch
Rear TypeII
Controlposition and draft control
Rear lift (at ends)9171 lbs
4159 kg
 11023 lbsOptOptional
5000 kg
Power Take-off (PTO)
Rear PTOindependent
Clutch310mm dry disc
Rear PTO Type540/1000
Engine RPM540@1920
 1000@2000
Dimensions & Tires
2WD Wheelbase103.4 inches
262 cm
4WD Wheelbase101.9 inches
258 cm
Weight9458 to 10538 pounds
Front tire10.00-16
2WD Rear tire16.9R38
Full dimensions and tires ...
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Battery volts12
Battery AH110
References
956 references literature
956XL - 1056XL published by International Harvester
