International Harvester 633

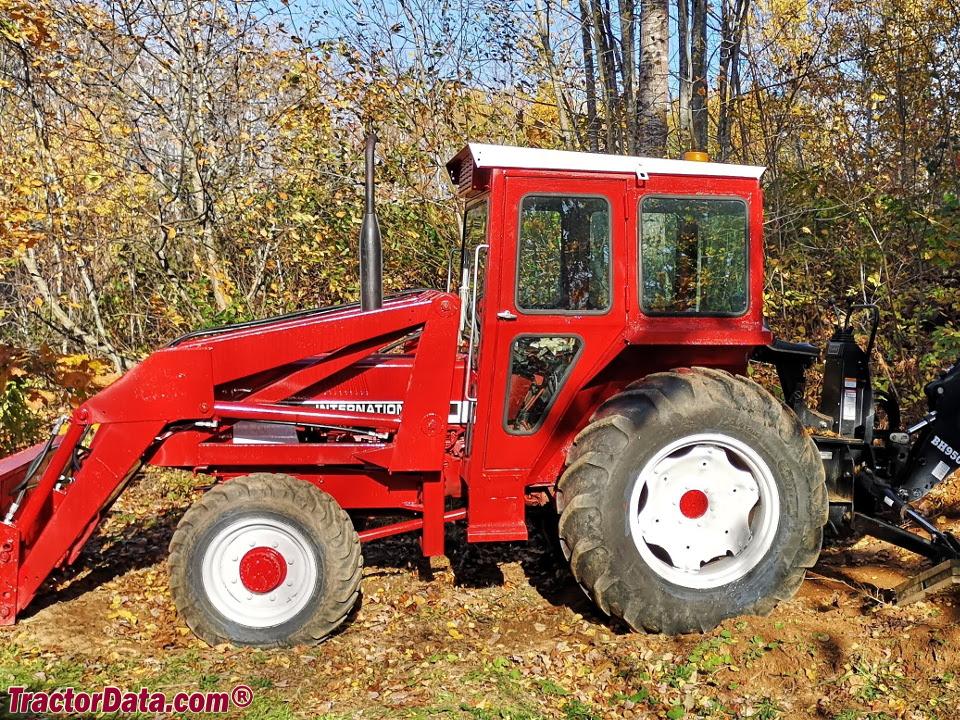

International Harvester 633 tractor photo
1975 - 1978
33 Series
Utility tractor
Series:533633733
Production
Manufacturer:International Harvester
Type:Utility tractor
Factory:Neuss, Germany
Variants
633:utility
633E:narrow
633V:vineyard
International Harvester 633 Power
Engine:52 hp
38.8 kW
International Harvester 633 Engine
International Harvester 2.9L 3-cyl diesel
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD
Brakes:disc
Cab:Open operator station. Cab optional with heater.
Transmissions:8-speed
 16-speed
Transmission details ...
Photos
No photos of the International Harvester 633 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel:15.85 gal
60.0 L
Hydraulic system:3.2 gal
12.1 L
Hydraulics
Capacity:3.2 gal
12.1 L
Pump flow:8.6 gpm
32.6 lpm
Tractor hitch
Rear Type:II
Rear lift:3969 lbs
1800 kg
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
Dimensions & Tires
2WD Wheelbase:81.5 inches
207 cm
4WD Wheelbase:79.9 inches
202 cm
Weight:5158 to 5589 pounds
Front tire:6.50-16
2WD Rear tire:12.4/11-36
Full dimensions and tires ...
Electrical
Charging system:alternator
Battery volts:12
