International Harvester 1046

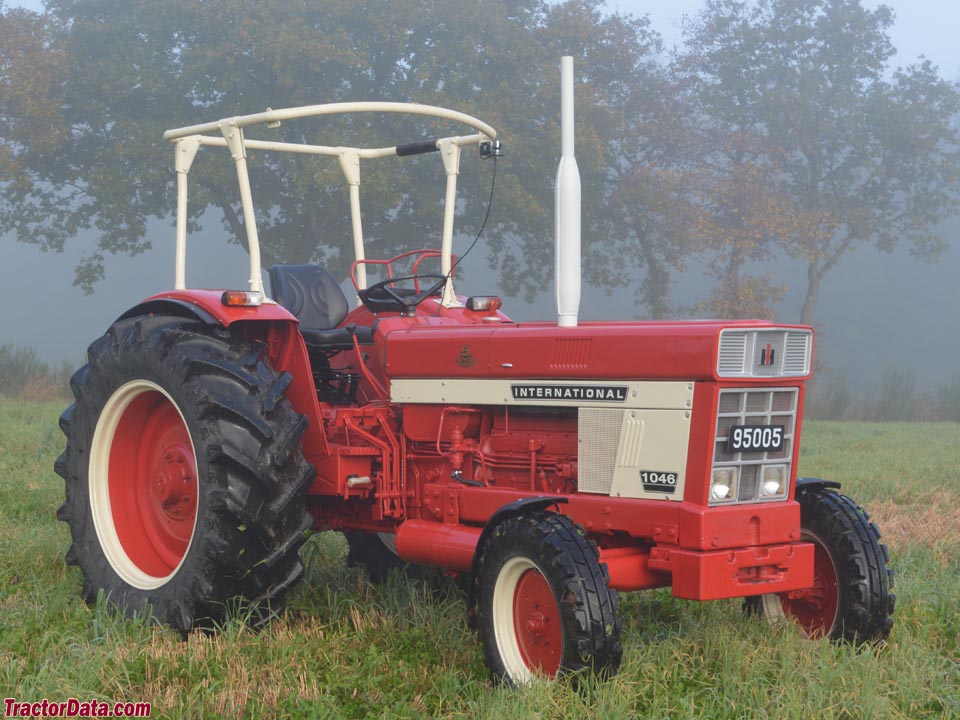

International Harvester 1046 tractor photo
1971 - 1978
Row-Crop tractor
Manufacturer:International Harvester
Type:Row-Crop tractor
Factory:Neuss, Germany
International Harvester 1046 Power
Engine (gross):108.5 hp
80.9 kW
PTO (claimed):93.9 hp
70.0 kW
International Harvester 1046 Engine
International Harvester 5.9L 6-cyl diesel
Fuel tank:29.1 gal
110.1 L
Engine details ...
Chassis:4x2 2WD
 4x4 MFWD 4WD
Transmission details ...
Pump flow:10 gpm
37.9 lpm
Tractor hitch
Rear Type:II
Rear lift:6615 lbs
3000 kg
Power Take-off (PTO)
Rear RPM:540/1000
Dimensions & Tires
Wheelbase:102 inches
259 cm
Weight:8929 to 9700 pounds
Front tire:7.50x20
2WD Rear tire:18.4/15x38
Full dimensions and tires ...
Page information
Last update:April 13, 2021
