Tractors > AGCO Allis > 9675

AGCO Allis 9675 Tests



AGCO Allis 9675 tractor photo
1994 - 1998
9600 Series
Row-Crop tractor
Series map:
9655
9675
9695
172.2hp*
194.4hp*
216.7hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1699

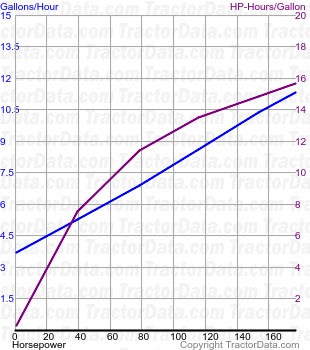

9675 fuel use from test 187
OCED Tractor Test 1699
Diesel 18-speed 4WD
September 20 - 28, 1995
Link: OCED Tractor Test 1699 file
PTO performance
Max power191.97 hp
143.2 kW
Fuel use11.1 gal/hour
42.0 l/hour
Power at rated engine speed176.44 hp
131.6 kW
Fuel use11.3 gal/hour
42.8 l/hour
Power at rated PTO speed184.44 hp
137.5 kW
Fuel use11.2 gal/hour
42.4 l/hour
Drawbar performance
Max power149 hp
111.1 kW
Fuel use11.2 gal/hour
42.4 l/hour
Gear 10 used for power test.
Max pull17654 lbs
8007 kg
Gear 5 used for pull test.
