Tractors > AGCO Allis > 9655

AGCO Allis 9655 Tests



AGCO Allis 9655 tractor photo
1994 - 1998
9600 Series
Row-Crop tractor
Series map:
9635
9655
9675
150.0hp*
172.2hp*
194.4hp*
*Estimated engine power for comparison only.
OCED Tractor Test 1698

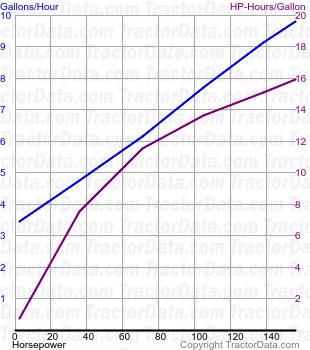

9655 fuel use from test 186
OCED Tractor Test 1698
Diesel 18-speed 4WD
September 6 - 22, 1995
Link: OCED Tractor Test 1698 file
PTO performance
Max power168.70 hp
125.8 kW
Fuel use9.8 gal/hour
37.1 l/hour
Power at rated engine speed155.66 hp
116.1 kW
Fuel use9.8 gal/hour
37.1 l/hour
Drawbar performance
Max power135.53 hp
101.1 kW
Fuel use9.8 gal/hour
37.1 l/hour
Gear 11 used for power test.
Max pull16739 lbs
7592 kg
Gear 5 used for pull test.
