AGCO Allis 8785

AGCO Allis 8785 tractor photo
1998 - 1999
8700 Series
Row-Crop tractor
Series map:
*Estimated engine power for comparison only.
ManufacturerAGCO Allis (a part of AGCO)
Row-Crop tractor
Built in Beauvais, France
Original price$47,048 (1998 2WD ROPS )
$59,117 (1998 2WD Cab )
$55,502 ( 4WD ROPS )
$67,856 ( 4WD Cab )
6810similar White model
AGCO Allis 8785 Engines
SisuDiesel 6.6L 6-cyl diesel
Cummins 5.9L 6-cyl diesel
ROPS Fuel tank42 gal
159.0 L
Cab Fuel tank59 gal
223.3 L
Engine details ...
AGCO Allis 8785 Power
PTO (claimed)110 hp
82.0 kW
Drawbar (tested)95.93 hp
71.5 kW
PTO (tested)119.87 hp
89.4 kW
Performance test details ...
Two- or four-wheel drive
Final drivesinboard planetary
Differential lockelectro-hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning. Two-post fixed ROPS available.
Typeclosed center
Pressure2900 psi
200.0 bar
Valves2 or 3
Pump flow27.7 gpm
104.8 lpm
SCV flow27.7 gpm
104.8 lpm
Tractor hitch
Rear TypeII
Controlelectronic draft sensing
Rear lift (at 24"/610mm)9000 lbs
4082 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540/1000 (1.375)
Dimensions & Tires
Wheelbase112.6 inches
286 cm
Weight10800 to 12450 pounds
Front tire11.00-16
Rear tire18.4R38
Full dimensions and tires ...
8785 Serial Numbers
Location:Console, right side

FAQ: How to read a serial number table.
Charging systemalternator
Battery CCA590
Battery volts12

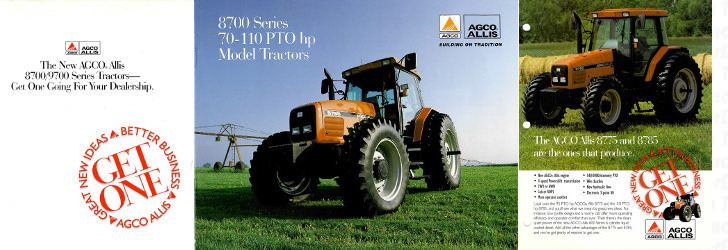

8785 references literature
New 8700/9700 Series Tractors published in 1997, by AGCO
8700 Series Tractors published in 2001, by AGCO
8775 - 8785 published in 1997, by AGCO
