Deutz D 6206
| | 1974 - 1981 |
| 06 Series | | Utility tractor |
|
| Production |
| Manufacturer: | Deutz
|
| Type: | Utility tractor
|
| Variants |
| D6206: | 2WD
|
| D6206A: | 4WD
|
| Deutz D 6206 Power |
| Engine: | 60 hp
44.7 kW
|
| Mechanical |
| Chassis: | 4x2 2WD
|
| | 4x4 MFWD 4WD
|
| Steering: | manual
|
| Steering: | power*Power steering standard with four-wheel drive, optional with two-wheel drive.
|
| Brakes: | disc
|
| Cab: | Four post ROPS available. EURO comfort cab optional with heater.
|
| Transmissions: | 8-speed synchromesh
|
| | 12-speed synchromesh with creeper
|
 Transmission details ... |
| Hydraulics |
| Pump flow: | 8.2 gpm
31.0 lpm
|
| Tractor hitch |
| Rear Type: | II
|
| Rear lift: | 4410 lbs
2000 kg
|
| Power Take-off (PTO) |
| Rear PTO: | live
|
| | independent*Optional
|
| Rear RPM: | 540
|
| | 540/1000*Optional
|
| Engine RPM: | 540@1700
|
| Page information |
| Last update: | December 30, 2021
|
| Copyright: | Copyright 2021 TractorData LLC
|
| Contact: | Peter@TractorData.com
|
©2000-2021 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...

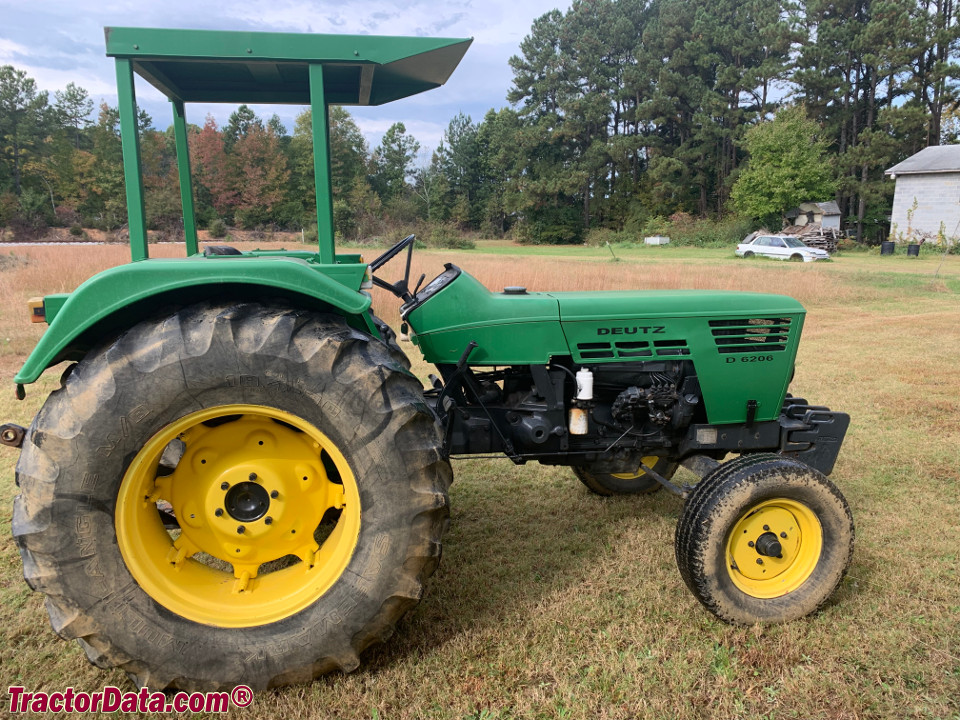

Deutz D 6206 photos...
