Tractors > Deutz > D 3006

Deutz D 3006



Deutz D 3006 tractor photo
1967 - 1981
06 Series
Utility tractor
Series:D 2506 ← D 3006 → D 4006
Production
Manufacturer:Deutz
Type:Utility tractor
Deutz D 3006 Power
Engine:30 hp
22.4 kW
Deutz D 3006 Engine
Deutz 1.9L 2-cyl diesel
Fuel tank:18.5 gal
70.0 L
Engine details ...
Mechanical
Chassis:4x2 2WD
Cab:Cab optional with heat.
Transmission:8-speed
Transmission details ...
Photos
Deutz D 3006
Deutz D 3006 photos...
Hydraulics
Pump flow:3.17 gpm
12.0 lpm
Power Take-off (PTO)
Rear PTO:live
Rear RPM:540
Dimensions & Tires
Wheelbase:73.4 inches
186 cm
Weight:4,120 lbs
1868 kg
Front tire:6.00-16
Rear tire:11-28
Full dimensions and tires ...

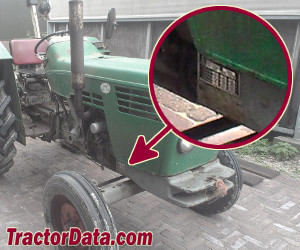

D 3006 Serial Numbers
Location:Front-right of tractor frame, above front axle.
photo of D 3006 serial number

Belt Pulley
Diameter:9.6 inches
24 cm
Width:3.9 inches
9 cm
RPM:1280
Speed:3250 ft/min
990.60 meters/min
