Deutz-Fahr DX 120 Tests

Deutz-Fahr DX 120 tractor photo
1981 - 1983
DX Series
Row-Crop tractor
Series map:
DX 110
DX 120
DX 130
*Estimated engine power for comparison only.
Nebraska Tractor Test 1405

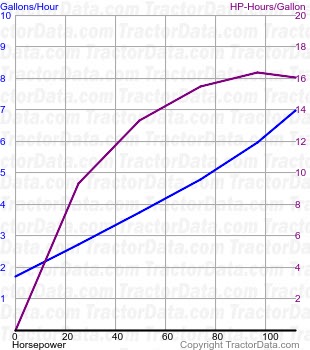

DX 120 fuel use from test 1405
Nebraska Tractor Test 1405
Diesel 15-speed 2WD
September 17 - 24, 1981
Link: Nebraska Tractor Test 1405 file
PTO performance
Power at rated engine speed111.29 hp
83.0 kW
Fuel use6.9 gal/hour
26.1 l/hour
Power at rated PTO speed101.90 hp
76.0 kW
Fuel use6.2 gal/hour
23.5 l/hour
Drawbar performance
Max power92.86 hp
69.2 kW
Fuel use6.8 gal/hour
25.7 l/hour
Gear 1H used for power test.
Max pull12615 lbs
5722 kg
Gear 1M used for pull test.
