Fiat 65-90 Transmission



Fiat 65-90 tractor photo
1987 - 1992
90 Series
Utility tractor
Series:60-90 ← 65-90 → 70-90
Transmissions overview
12-speed
12-speed shuttle
20-speed creeper
Transmission
Gears:12 forward and 4 reverse
Clutch:280mm dry disc
Four gears (1-4) in three ranges (low, medium, high) plus reverse range.
Speeds

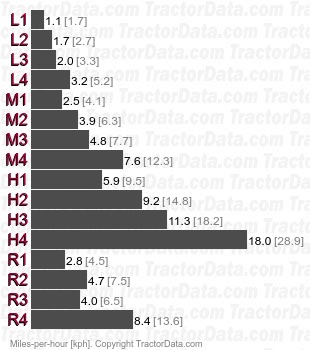

65-90 speeds
Transmission
Type:shuttle
Gears:12 forward and reverse
Clutch:280mm dry disc
Four gears (1-4) in three ranges (low, medium, high) with left-hand shuttle.
Speeds
65-90 shuttle speeds
Transmission
Type:creeper
Gears:20 forward and 8 reverse
Clutch:280mm dry disc
Additional two forward and one reverse creeper ranges added to the basic transmission.
Speeds

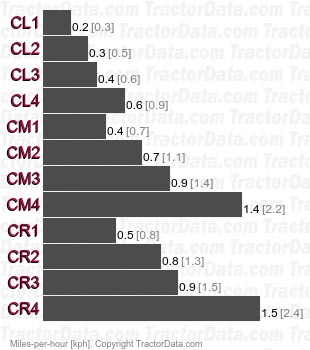

65-90 creeper speeds
