Kubota MX5000

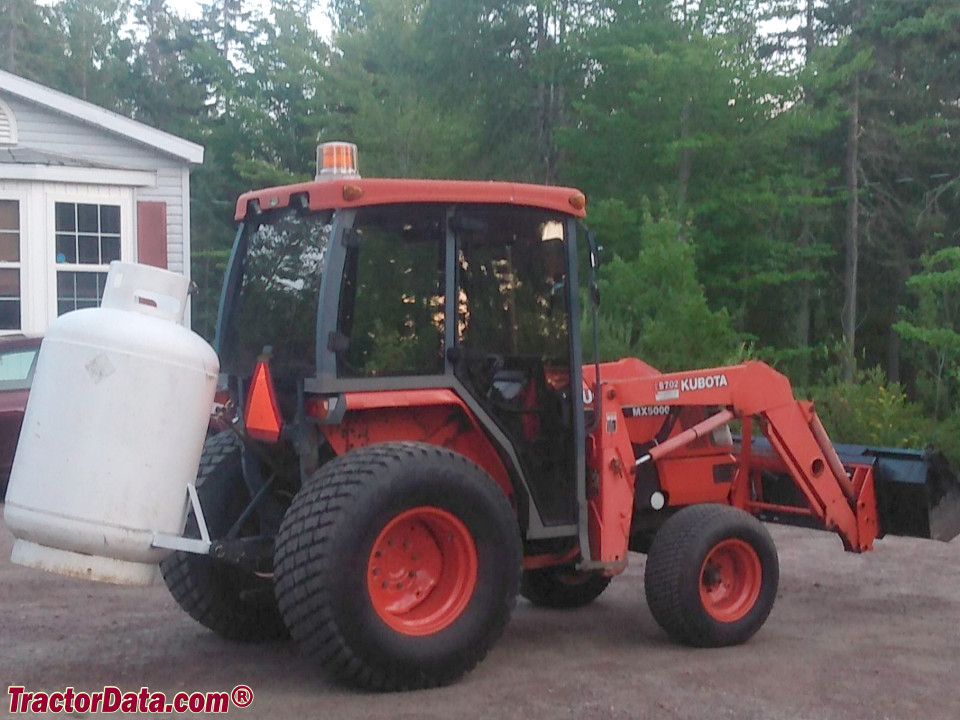

Kubota MX5000 tractor photo
2002 - 2008
MX Series
Utility tractor
Series:MX5000
MX5100
Production
Manufacturer:Kubota
Type:Utility tractor
The Kubota MX5000 was marketed as an intermediate model between the L and M series line. It was less expensive than the similar M4900 and used a more basic transmission and hydraulic system.
Variants
MX5000F:2WD
MX5000DT:4WD
MX5000SU:basic model
Kubota MX5000 Power
Engine (gross):52.2 hp
38.9 kW
Engine (net):50 hp
37.3 kW
PTO (claimed):44 hp
32.8 kW
Kubota MX5000 Engine
Kubota 2.4L 4-cyl diesel
Fuel tank:13.2 gal
50.0 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Final drives:spur gear
Differential lock:mechanical rear lock standard
Steering:hydrostatic power
Brakes:mechanical wet disc
Cab:Two-post ROPS. Canopy optional.
Transmission:8-speed partially synchronized
Transmission details ...
Photos
No photos of the Kubota MX5000 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Valves:3 (optional)
Pump flow:9.2 gpm
34.8 lpm
Total flow:14 gpm
53.0 lpm
Tractor hitch
Rear Type:2/1
Control:position control
 draft control (optional)
Rear lift (at ends):2,866 lbs
1300 kg
Rear lift (at 24"/610mm):2,315 lbs
1050 kg
Power Take-off (PTO)
Rear PTO:independent
Clutch:hydraulic wet disc
Rear RPM:540
Dimensions & Tires
2WD Wheelbase:71.6 inches
181 cm
4WD Wheelbase:71.1 inches
180 cm
Weight:3284 to 3560 pounds
Front tire:7.5L-15
Rear tire:14.9-26
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:40
Battery CCA:582
Battery volts:12
