Kubota M95S

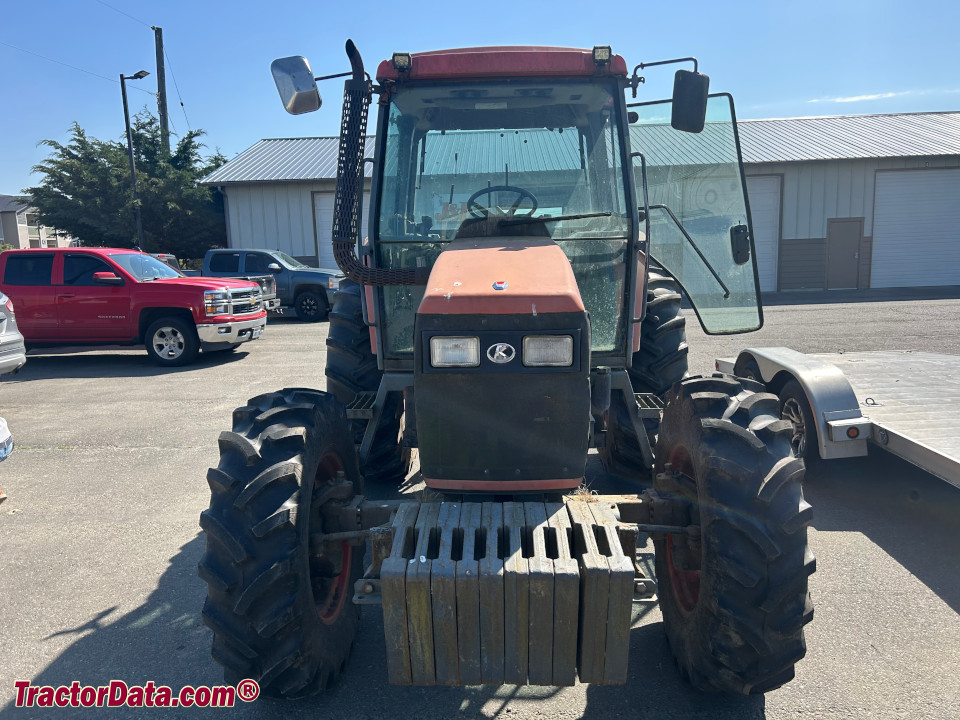

Kubota M95S tractor photo
2005 - 2006
Series:M95SM105S
Production
Manufacturer:Kubota
Variants
M95X:IntelliShift
M95H:2WD ROPS
M95DS-F:4WD ROPS
M95DSC:4WD cab
Kubota M95S Power
Engine (net):95 hp
70.8 kW
PTO (claimed):84 hp
62.6 kW
Kubota M95S Engine
Kubota 3.8L 4-cyl diesel
Fuel tank:46 gal
174.1 L
Engine details ...
Mechanical
Chassis:4x2 2WD
 4x4 MFWD 4WD (optional)
Steering:Hydrostatic power steering
Brakes:wet disc
Cab:Cab optional with heat and air-conditioning
Transmissions:32-speed
 48-speed
 16-speed
Transmission details ...
Photos
No photos of the Kubota M95S are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Valves:1 to 3
Pump flow:17.2 gpm
65.1 lpm
Tractor hitch
Rear Type:II
Rear lift (at 24"/610mm):4,630 lbs
2100 kg
 7,490 lbs
3397 kg (optional)
Power Take-off (PTO)
Rear PTO:independent
Rear RPM:540
 540/1000 (optional)
Dimensions & Tires
Wheelbase:95.9 inches
243 cm
Weight:6261 to 7628 pounds
Front tire:12.4-24
Rear tire:18.4-30
Full dimensions and tires ...
Electrical
Ground:negative
Charging system:alternator
Charging amps:45 (ROPS)
 60 (cab)
 80 (optional)
Battery volts:12
