Tractors > Kubota > L4240

Kubota L4240 - transmission

Kubota L4240 tractor photo
2007 - 2013   L40 Series
Compact Utility tractor
Previous model:Kubota L4330
Series next:Kubota L4740
Series back:Kubota L3940
more Kubota L4240 specifications...






Transmission:

Transmission:HST Plus
Type:hydrostatic
Gears:infinite (3-range) forward and reverse
Oil capacity:45.6 qts [43.2 L]
Controlled by treadle foot pedal, cruise control standard with left-hand lever. Three range with Hydro Dual Speed, a high/low power shift controlled by left-hand lever. Auto Hydro Dual speed allows automatic control to match load. Stall Guard maintains engine RPMs by reducing speed under load. HST Response Control adjusts acceleration rates. Auto Throttle Advance links engine RPMs to transmission, so that the throttle increases when speed is increased.
Speeds:

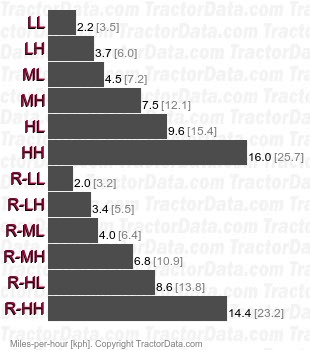

L4240 HST Plus hydrostatic speeds

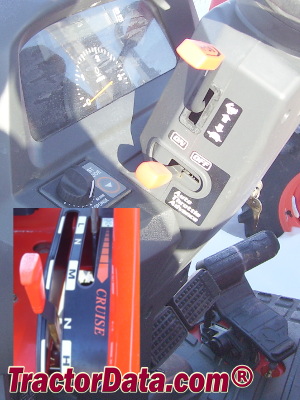

Kubota L4240 HST Plus transmission photo



Transmission:

Transmission:FST sync shuttle
Gears:8 forward and reverse
Clutch:dry disc
Oil capacity:45.6 qts [43.2 L]
Speeds:

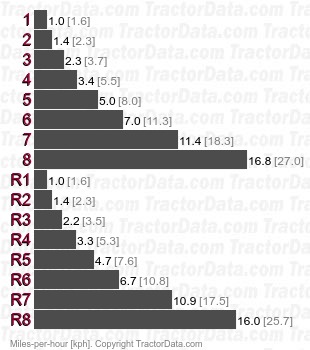

L4240 FST sync shuttle  speeds


Transmission:

Transmission:Glide Shift (GST)
Gears:12 forward and 8 reverse
Oil capacity:45.6 qts [43.2 L]
Speeds:

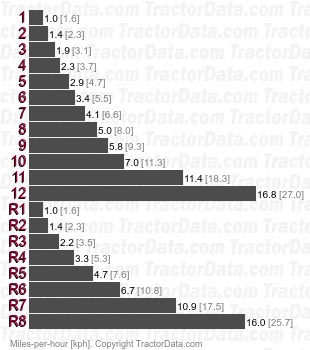

L4240 Glide Shift (GST)  speeds
