Fordson Power Major Tests
|
|
Series map:
Power Major
39.4kw*
*Estimated engine power for comparison only.
| Nebraska Tractor Test 685 | |||
| |||
| Nebraska Tractor Test 685 | |
| Diesel 6-speed 2WD February 27, 1959 - March 16, 1957 Link: Nebraska Tractor Test 685 file | |
| PTO performance | |
| Power at rated engine speed | 47.65 hp 35.5 kW |

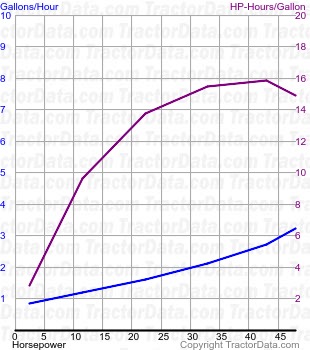

| Fuel use | 3.2 gal/hour 12.1 l/hour |
| Power at rated PTO speed | 45.39 hp 33.8 kW |
| Fuel use | 3.0 gal/hour 11.4 l/hour |
| Drawbar performance | |
| Max power | 42.63 hp 31.8 kW |
| Fuel use | 3.2 gal/hour 12.1 l/hour |
| Gear 3 used for power test. | |
| Max pull | 8,038 lbs 3646 kg |
| Gear 1 used for pull test. | |
