Fordson Power Major Engine


Fordson Power Major tractor photo
1958 - 1961
New Major
Series:Power Major
Super Major
Engines overview
Ford 3.6L 4-cyl diesel
Ford 3.3L 4-cyl gasoline

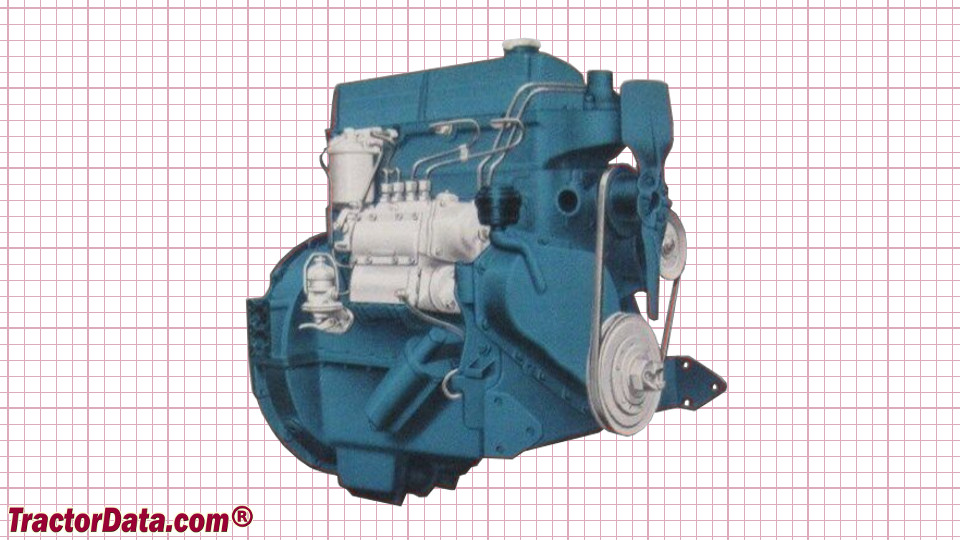

Engine Detail
Ford
diesel
4-cylinder
liquid-cooled
Displacement:220 ci
3.6 L
Bore/Stroke:3.937x4.524 inches
100 x 115 mm
Air cleaner:oil bath
Compression:16.1:1
Rated RPM:1600
Firing order:1-2-4-3
Starter:electric
 inertia starter optional
Starter volts:12
Oil capacity:7.2 qts
6.8 L
Coolant capacity:14.4 qts
13.6 L
Engine Detail
Ford
gasoline
4-cylinder
liquid-cooled
Displacement:199 ci
3.3 L
Bore/Stroke:3.74x4.524 inches
95 x 115 mm
Compression:5.9:1
Rated RPM:1600
Firing order:1-2-4-3
Starter volts:12
Oil capacity:7.2 qts
6.8 L
Sparkplug gap:0.025 inches
0.635 mm
Point gap:0.015 inches
0.381 mm
