Zetor 4320
| | 1993 - 1997 |
| Range 1 Series | | Utility tractor |
|
Series map:
3340
4320
4340
46.0hp
59.0hp
59.0hp
| Production |
| Manufacturer | Zetor
|
| Utility tractor |
| Built in Brno, Czech Republic |
| Original price was $18,500 in 1998 |
| Zetor 4320 Power |
| Engine | 59 hp
44.0 kW
|
| PTO (claimed) | 55 hp
41.0 kW
|
| Drawbar (tested) | 46.64 hp
34.8 kW
|
| PTO (tested) | 53.09 hp
39.6 kW
|
 Performance test details ... |
| Mechanical |
| Two-wheel drive |
| Power steering |
| Hydraulic dry disc brakes |
| Two-post ROPS. Cab available with air-conditioning. |
| Hydraulics |
| Type | open center
|
| Pressure | 2600 psi
179.3 bar
|
| Valves | 1 to 3
|
| Pump flow | 11 gpm
41.6 lpm
|
| Total flow | 15 gpm
56.8 lpm
|
| Steering flow | 4 gpm
15.1 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Control | position and draft control
|
| Rear lift | 5850 lbs
2653 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000
|
| Electrical |
| Charging system | alternator
|
| Charging amps | 55
|
| Battery CCA | 950
|
| Battery volts | 12
|
| References |
 |
| Range 1 Tractors published by Zetor |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on June 2, 2016 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

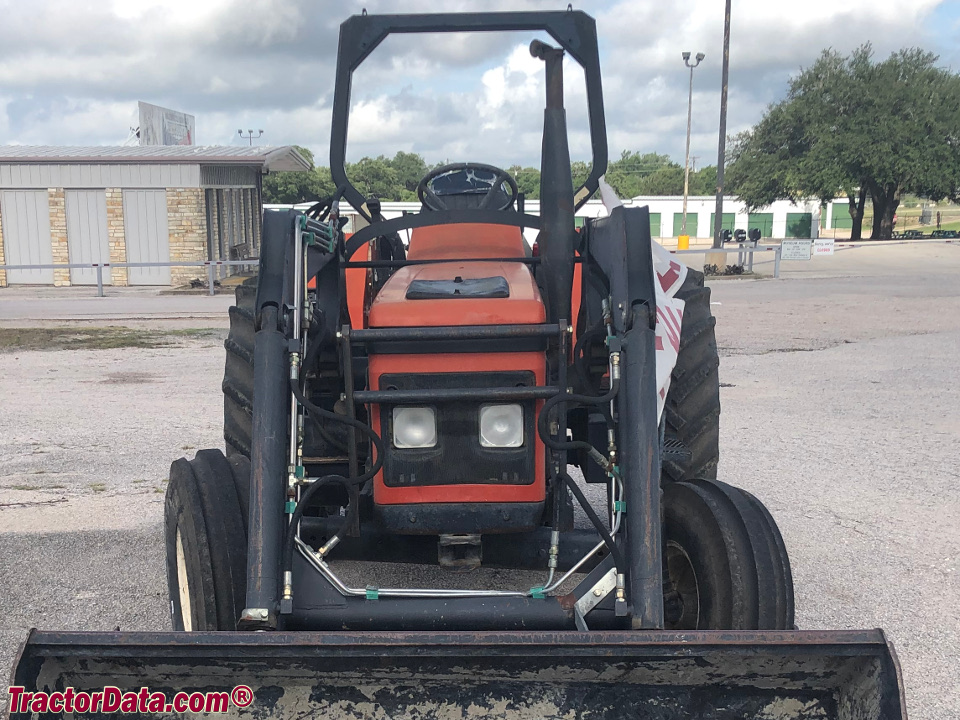

Zetor 4320 photos...
