CaseIH MXM120 Maxxum Transmission


CaseIH MXM120 Maxxum tractor photo
2002 - 2007
Maxxum Series
Row-Crop tractor
Series:MXM120 MaxxumMXM130
Transmissions overview
18-speed partial powershift
18-speed full power shift
Transmission
Type:partial powershift
Gears:18 forward and 6 reverse
Clutch:wet disc
Six power shift gears (1-6) in three ranges (A-C). Power shuttle shifting.
Speeds

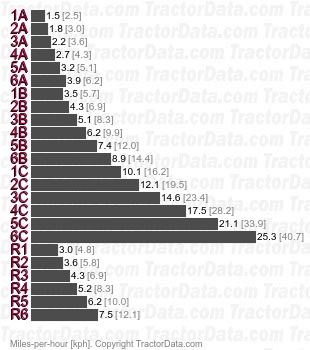

MXM120 Maxxum  partial powershift speeds
Transmission
Type:full power shift
Gears:18 forward and 6 reverse
Optional full power shift transmission with power shuttle.
