CaseIH MXM120 Maxxum Tests


CaseIH MXM120 Maxxum tractor photo
2002 - 2007
Maxxum Series
Row-Crop tractor
Series:MXM120 MaxxumMXM130
OCED Tractor Test 2086

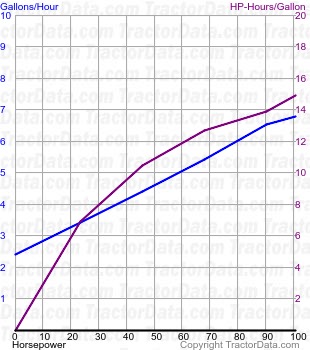

MXM120 Maxxum fuel use from test 429
OCED Tractor Test 2086
Diesel 18-speed 4WD
December 1, 2002 - March 1, 2003
Link: OCED Tractor Test 2086 file
PTO performance
Max power:104.9 hp
78.2 kW
Fuel use:6.4 gal/hour
24.2 l/hour
Power at rated engine speed:100.7 hp
75.1 kW
Fuel use:6.8 gal/hour
25.7 l/hour
Power at rated PTO speed:104.1 hp
77.6 kW
Fuel use:6.7 gal/hour
25.4 l/hour
Drawbar performance
Max power:83.0 hp
61.9 kW
Fuel use:6.8 gal/hour
25.7 l/hour
Gear 3B used for power test.
Max pull:12,320 lbs
5588 kg
Gear 1A used for pull test.
