Tractors > CaseIH > JX85 Maxxima

CaseIH JX85 Maxxima Tests



CaseIH JX85 Maxxima tractor photo
2002 - 2006
Model year
JX Series
Utility tractor
Turk Tractor built
Series map:
JX75
JX85
JX95
75.0hp
77.8hp*
93.0hp
OCED Tractor Test 405

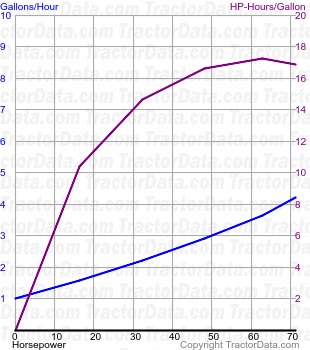

JX85 Maxxima fuel use from test 2031
OCED Tractor Test 405
238 diesel 12-speed 4WD
May 2002 - August 2002,
Link: OCED Tractor Test 405 file
PTO performance
Power at rated engine speed71.1 hp
53.0 kW
Fuel use4.2 gal/hour
15.9 l/hour
Power at rated PTO speed65.8 hp
49.1 kW
Fuel use3.9 gal/hour
14.8 l/hour
Drawbar performance
Max power58.4 hp
43.5 kW
Fuel use4.0 gal/hour
15.1 l/hour
Max pull4460 lbs
2023 kg
