Tractors > CaseIH > JX75 Maxxima

CaseIH JX75 Maxxima Tests



CaseIH JX75 Maxxima tractor photo
2002 - 2006
Model year
JX Series
Utility tractor
Turk Tractor built
Series map:
JX65
JX75
JX85
65.0hp
75.0hp
77.8hp*
*Estimated engine power for comparison only.
OCED Tractor Test 2017

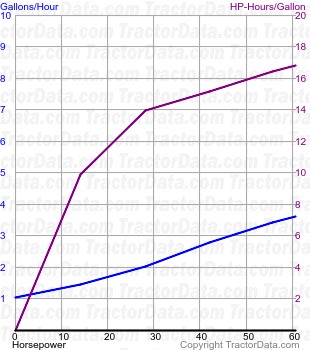

JX75 Maxxima fuel use from test 404
OCED Tractor Test 2017
220 diesel 12-speed 4WD
February 2002 - June 2002,
Link: OCED Tractor Test 2017 file
PTO performance
Power at rated engine speed60.6 hp
45.2 kW
Fuel use3.6 gal/hour
13.6 l/hour
Power at rated PTO speed56.3 hp
42.0 kW
Fuel use3.3 gal/hour
12.5 l/hour
Drawbar performance
Max power49.5 hp
36.9 kW
Fuel use3.6 gal/hour
13.6 l/hour
Gear 10 used for power test.
Max pull3930 lbs
1782 kg
