| | 2005 - 2008 |
| DX Series | | Compact Utility tractor |
|
Series map:
DX23
DX26
23.0hp
26.0hp
| Transmission options |
| hydrostatic |
| 9-speed gear |

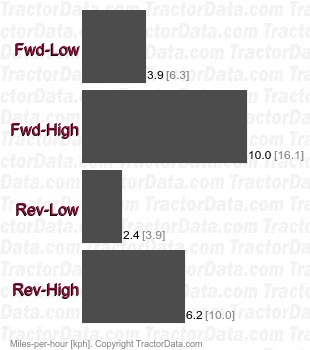

| Transmission |
| Type | hydrostatic
|
| Gears | infinite forward and reverse (2-range)
|
| Speeds |
| With 29x10.00-15 R3 rear tires. |
|

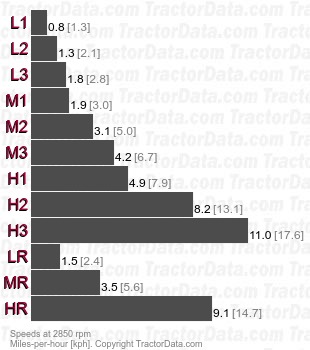

| Transmission |
| Type | gear
|
| Gears | 9 forward and 3 reverse
|
| Clutch | 184mm dry disc
|
| Three gears (1-3), plus reverse, (R), in three ranges. Tractor must be stopped, and clutch used, to shift gears or range. |
| Speeds |
| With 9.5-16 R1 rear tires. |
|
