Tractors > CaseIH > DX23

CaseIH DX23 Engine



CaseIH DX23 tractor photo
2005 - 2008
DX Series
Compact Utility tractor
Series map:
DX23
DX26
23.0hp
26.0hp
Engine Detail
Shibaura S773
diesel
3-cylinder
liquid-cooled inline
Displacement61.3 ci
1.0 L
Bore/Stroke3.031x2.835 inches
77 x 72 mm
Power (gross)23 hp
17.2 kW
Compression24:1
Rated RPM2850
Idle RPM1100-3075
Firing order1-2-3
Starter volts12
Coolant capacity3.7 qts
3.5 L
Intake valve clearance0.008 inches (cold)
0.203 mm
Exhaust valve clearance0.008 inches (cold)
0.203 mm
Engine Oil

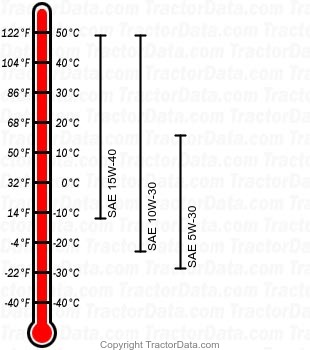

DX23 diesel engine oil chart
Oil capacity3 qts
2.8 L
Oil change100 h
