Tractors > John Deere > 8520T

John Deere 8520T Tests



John Deere 8520T tractor photo
2002 - 2005
8020 Series
Agricultural Crawler tractor
Series map:
8420T
8520T
284.0hp
305.0hp
OCED Tractor Test 1802

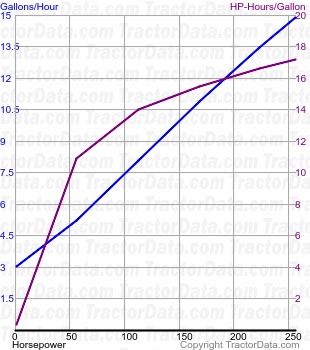

8520T fuel use from test 368
OCED Tractor Test 1802
Diesel 16-speed crawler

Link: OCED Tractor Test 1802 file
PTO performance
Max power291.67 hp
217.5 kW
Fuel use16.0 gal/hour
60.6 l/hour
Power at rated engine speed255.96 hp
190.9 kW
Fuel use14.9 gal/hour
56.4 l/hour
Drawbar performance
Max power219.23 hp
163.5 kW
Fuel use14.9 gal/hour
56.4 l/hour
Gear 9 used for power test.
Max pull27,960 lbs
12682 kg
Gear 5 used for pull test.
