John Deere 7920
|
|
| Production | |
| Manufacturer | John Deere |
| Row-Crop tractor | |
| Built in Waterloo, Iowa, USA | |
| John Deere 7920 Engine | |
| John Deere 8.1L 6-cyl diesel | |
 Engine details ... |
| John Deere 7920 Transmission | |
| infinitely variable transmission | |
 Transmission details ... |
| John Deere 7920 Power | |
| Engine (gross) | 205.2 hp 153.0 kW |
| Engine (net) | 197.1 hp 147.0 kW |
| Engine (max) | 219.9 hp 164.0 kW |
| PTO (claimed) | 170 hp 126.8 kW |
| Drawbar (tested) | 146.06 hp 108.9 kW |
| PTO (tested) | 192.77 hp 143.7 kW |
 Performance test details ... | |
| Mechanical | |
| Four-wheel drive | |
| Power steering | |
| Hydraulic wet disc brakes | |
| Cab standard. |

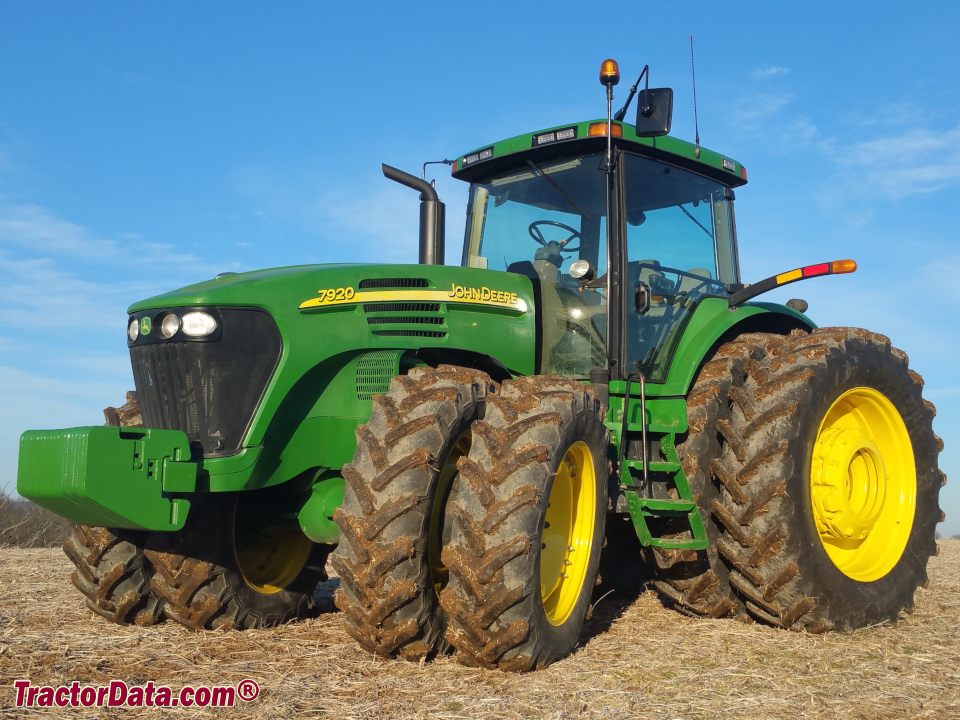

| Photos | |
 | |
 John Deere 7920 photos... | |
| Capacity | |
| Fuel | 103.5 gal 391.7 L |
| 94.7 gal (With right step) 358.4 L | |
| Hydraulic system | 28.5 gal 107.9 L |
| Front axle | 15.2 qts 14.4 L |
| Front hubs | 2 qts 1.9 L |
| HD Front hubs | 4 qts 3.8 L |
| Hydraulics | |
| Type | closed-center pressure-flow compensated (PFC) |
| Capacity | 28.5 gal 107.9 L |
| Pressure | 3046 psi 210.0 bar |
| Valves | 7 |
| Pump flow | 32.2 gpm 121.9 lpm |
| SCV flow | 30 gpm 113.6 lpm |
| Tractor hitch | |
| Rear Type | 3/3N |
| Rear lift | 10050 lbs 4558 kg |
| 14000 lbsOptOptional 6350 kg | |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | hydraulic wet discs |
| Rear RPM | 540/1000 (1.375) |
| 1000 (1.75) | |
| Engine RPM | 540@1950 1000@1950 |
| Front PTO | independent OptOptional |
| Front RPM | 1000 (1.75) |
| Dimensions & Tires | |
| Wheelbase | 112.6 inches 286 cm |
| Weight | 17603 to 17965 pounds |
| Front tire | 420/90R30 |
| Rear tire | 480/80R46 |
 Full dimensions and tires ... | |
| 7920 Serial Numbers |

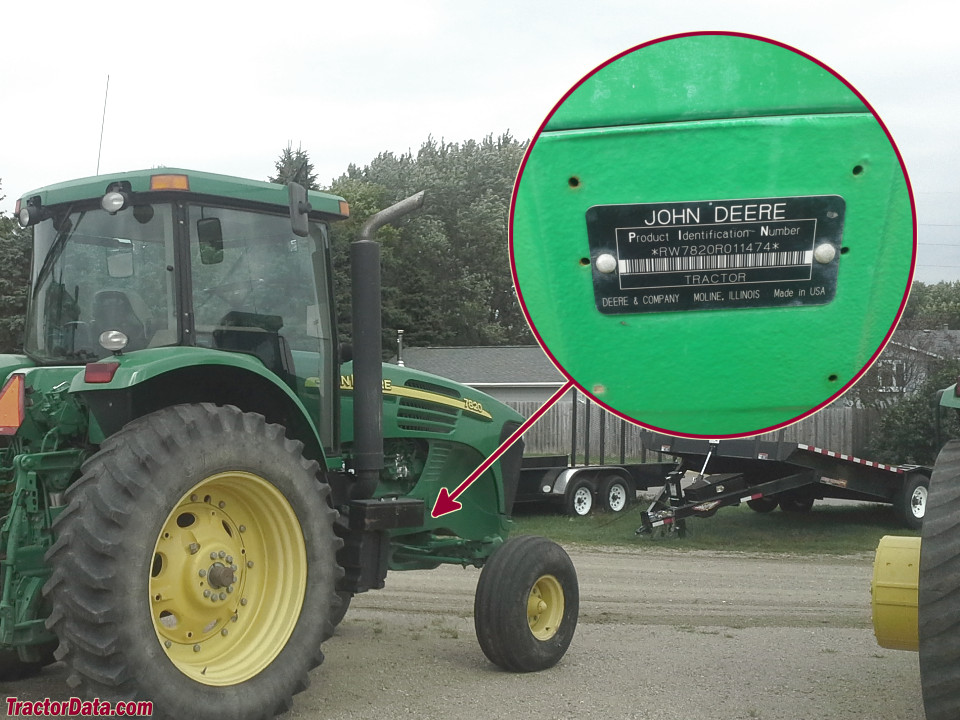

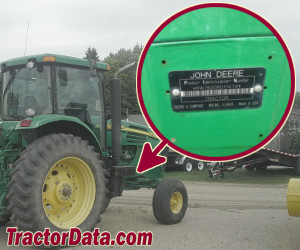

| 7920 Serial Location | |
 | |
| On tractor frame, front right-hand side. |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 150 |
| Batteries | 2 |
| Battery CCA | 925 |
| Battery volts | 12 |
| References | |
 | |
| 7020 Series published in 2003, by John Deere | |
| 7020 Series published in 2004, by John Deere | |
| 7020 Series published in 2005, by John Deere | |
| Get around-the-clock performance with the new 7020 Series Tractors published in 2003, by John Deere |
